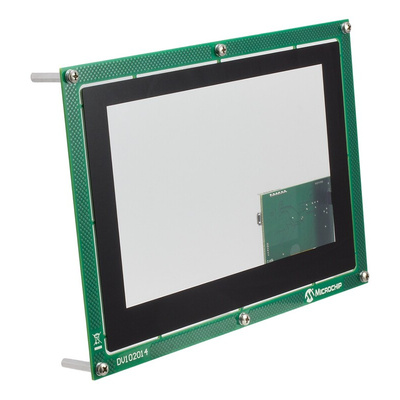

DV102014, Microchip PCAP and 3D GestIC Touchscreen Evaluation Board

Projected Capacitive Touch and 3D GestIC® Development Kit

The Microchip DV102014 is a complete reference system for the evaluation and design of Human Machine Interface (HMI) applications that combine Projected Capacitive Touch (2D) and GestIC (3D) technology. The kit combines all the needed components to get prototyping with the flexible user command combination of multi-touch and natural hand movements in the free space above the device.

The kit is designed to be operated with the complementary Microchip Aurea 2.0 development software. This graphical user interface (GUI) provides an intuitive means of setting up the featured devices, removing the need to develop code.

Kit Features

Complete Projected Capacitive Touch and 3D Gest IC system
No coding required – design via the intuitive Microchip Aurea Graphical User Interface (GUI)
Includes Touchscreen

3D GestIC Features

MGC3130 3D Tracking and Gesture Controller
Up to 200mm gesture detection range
Integrated 3D gesture suite including flicks, air circle and position tracking

Projective Capacitive Touch Features

MTCH6303 Projected Capacitive Touch Controller
MTCH652 High Voltage Driver for excellent signal-to-noise ratio (SNR)
Multi-touch, up to 10 touches
5 touches at 100Hz each (typical)
Integrated single and multi-finger gesture recognition suite including taps, swipes, scrolling, pinching and zooming
Advanced DSP processing provides noise avoidance

Kit Contents

1 x 2D/3D Sensor Module, including 8” screen and 3D sensor board
1 x 2D/3D Electronics Board
1 x Micro USB cable
