2202874, Phoenix Contact Polycarbonate Case in Grey, Корпус

Phoenix Contact Raspberry Pi RPI-BC Series, DIN Rail Enclosure

The RPI-BC enclosure from Phoenix Contact is designed to house a Raspberry Pi model A+, B+, B2 or B3. It features tool-free mounting and complies with DIN 43880 enabling it to be integrated in a distributor housing. The RPI-BC housing system can be mounted on a TS 35 DIN Rail or on a wall.

RPI-BC Housing System (DEV KIT)

RPI-BC 107,6 DEV-KIT KMGY (stock no. 122-4298)
A lower housing part (for Din Rail or wall mounting), base latch, upper housing part, housing cover and PCB holder for mounting the Raspberry Pi board
Light grey

RPI-BC Lower Housing Part

BC 107,6 UT HBUS KMGY (stock no. 122-4305)
A lower housing part and base latch (for Din Rail or wall mounting)
Light grey

RPI-BC Upper Housing Part

RPI-BC 107,6 DEV-KIT KMGY P10 (stock no. 122-4299)
An upper housing part and PCB holder for mounting the Raspberry Pi board
Light grey

RPI-BC Accessories

RPI-BC A+-ADAPTER ATGY (stock no. 122-4300) - an adapter for mounting the Raspberry Pi A+ model
RPI-BC EXT-PCB HBUS SET (stock no. 122-4304) a Perfboard and pin strip for connecting to the DIN Rail HBus connector
RPI-BC INT-PCB SET (stock no. 122-4303) a Perfboard, includes socket strips for the GPIO connection, solder rings for PTSM header, includes PTSM plugs and headers
PSTD 0,65X0,65/40-2,54 (stock no. 122-4301) a socket strip for connecting the RPI-BC INT-PCB SET Perfboard (or another additional PCB) to the GPIOs of the Raspberry Pi computer
PSTD 0,65X0,65/18-3IS-2,54 (stock no. 122-4302) a pin strip for connecting the RPI-BC EXT-PCB HBUS SET Perfboard (or another additional PCB) to the DIN Rail HBus connector

Note

Further PCBs can also be inserted in the housing in addition to the Raspberry Pi board.

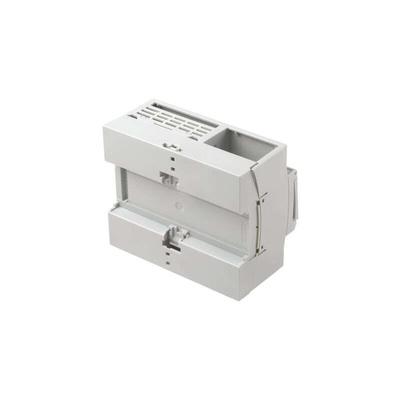

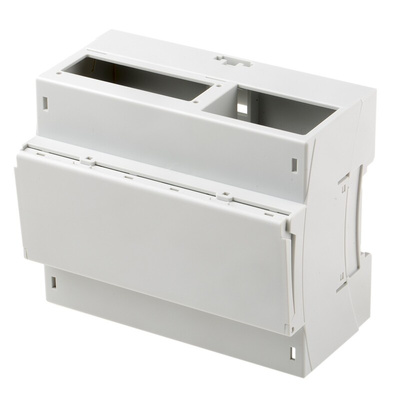

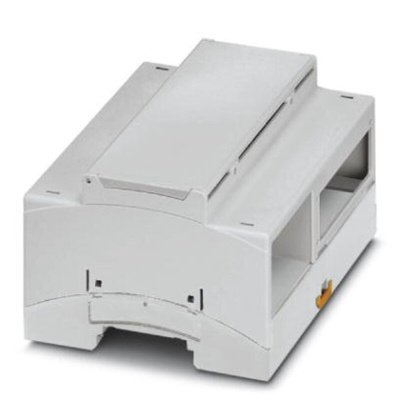

Phoenix Contact Polycarbonate Case, Grey - RPI-BC 107.6 DEV-KIT KMGY - 2202874

Use this sturdy case from Phoenix Contact to safely transport your Raspberry Pi computer. It's designed to house a Raspberry Pi model A+, B+, B2 or B3 and includes enough space to accommodate additional PCBs (printed circuit boards).
The case is easily mounted on a DIN rail for quick and easy integration in a distribution system. It's made from robust thermoplastic that's capable of withstanding high temperatures and harsh working conditions. This housing is also flame-retardant so won't burn in the event of a fire. Enjoy the time-saving benefits the case offers, thanks to its tool-free installation. The micro SD (secure digital) card can be replaced and backed up easily, even while mounted.
This unit is also suitable for wall mounting. You can use it for heating and lighting control or energy metering. It forms part of the Phoenix Contact BC portfolio of electronics enclosures, which allow for the connection of several extension modules to a Raspberry Pi computer.

• Dimensions of 89.7 (H) x 107.6 (W) x 62.2mm (D)
• Conforms to the RoHS (Restriction of Hazardous Substances) directive, meaning it contains no more than minimal levels of hazardous substances
• Meets the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, so it won't damage equipment via electrostatic discharge
