2202982, Phoenix Contact PCB Socket

Phoenix Contact Raspberry Pi RPI-BC Series, DIN Rail Enclosure

The RPI-BC enclosure from Phoenix Contact is designed to house a Raspberry Pi model A+, B+, B2 or B3. It features tool-free mounting and complies with DIN 43880 enabling it to be integrated in a distributor housing. The RPI-BC housing system can be mounted on a TS 35 DIN Rail or on a wall.

RPI-BC Housing System (DEV KIT)

RPI-BC 107,6 DEV-KIT KMGY (stock no. 122-4298)
A lower housing part (for Din Rail or wall mounting), base latch, upper housing part, housing cover and PCB holder for mounting the Raspberry Pi board
Light grey

RPI-BC Lower Housing Part

BC 107,6 UT HBUS KMGY (stock no. 122-4305)
A lower housing part and base latch (for Din Rail or wall mounting)
Light grey

RPI-BC Upper Housing Part

RPI-BC 107,6 DEV-KIT KMGY P10 (stock no. 122-4299)
An upper housing part and PCB holder for mounting the Raspberry Pi board
Light grey

RPI-BC Accessories

RPI-BC A+-ADAPTER ATGY (stock no. 122-4300) - an adapter for mounting the Raspberry Pi A+ model
RPI-BC EXT-PCB HBUS SET (stock no. 122-4304) a Perfboard and pin strip for connecting to the DIN Rail HBus connector
RPI-BC INT-PCB SET (stock no. 122-4303) a Perfboard, includes socket strips for the GPIO connection, solder rings for PTSM header, includes PTSM plugs and headers
PSTD 0,65X0,65/40-2,54 (stock no. 122-4301) a socket strip for connecting the RPI-BC INT-PCB SET Perfboard (or another additional PCB) to the GPIOs of the Raspberry Pi computer
PSTD 0,65X0,65/18-3IS-2,54 (stock no. 122-4302) a pin strip for connecting the RPI-BC EXT-PCB HBUS SET Perfboard (or another additional PCB) to the DIN Rail HBus connector

Note

Further PCBs can also be inserted in the housing in addition to the Raspberry Pi board.

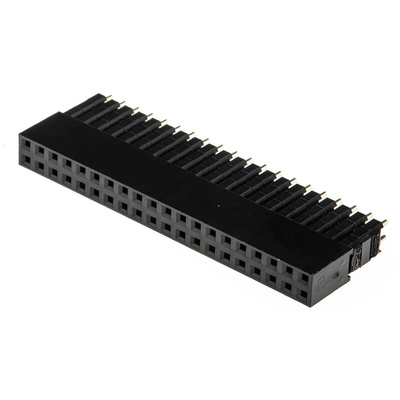

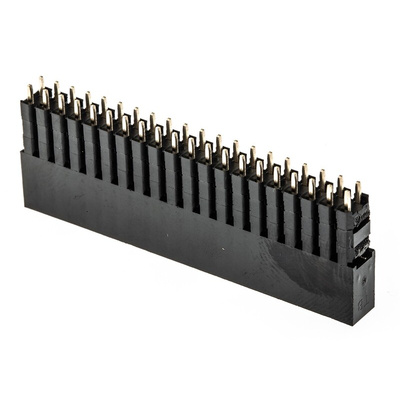

Phoenix Contact Socket Strip for Connecting Perforated Board - PSTD 0.65X0.65/40-2.54 - 2202982

Connect a printed circuit board (PCB) to a miniature computer using this socket strip from Phoenix Contact. It's specifically designed for establishing secure connections between a perfboard and the GPIOs (general purpose input/output) on the popular Raspberry Pi device or similar components.
This strip has a row of sockets on one side and small pins on the other, so you can mount it easily without any tooling. These pins can transmit an electronic signal to and from computing and electronic hardware. They're known as uncommitted pins, because they can be either an input or an output, or both. This makes for a flexible component that you can use in a wide variety of applications, depending on how you configure the pin connections.
The contacts are gold-plated, providing resistance to rust and corrosion and a long service life. The product's compact, lightweight size is ideal for miniature devices or applications where space is limited.

• Conforms to the Restriction of Hazardous Substances (RoHS) directive, indicating it contains little or no traces of any potentially harmful materials

Technical Dimension
