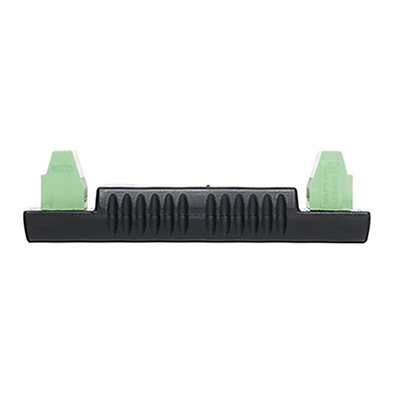

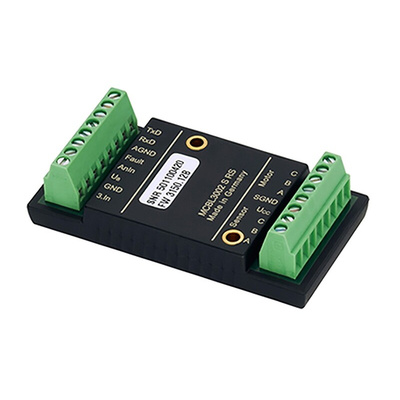

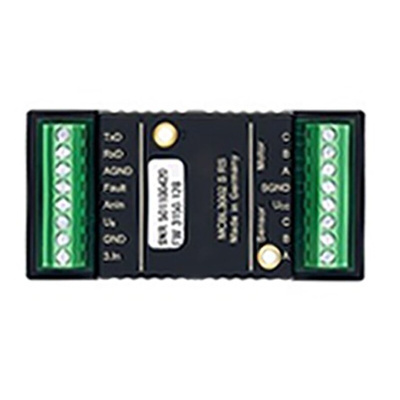

MCLM 3002 S RS, Faulhaber, DC Motor Controller, 3 Phase, 5 → 30 V dc, Panel Mount, Контроллер

Motion Controllers Series MCLM 3002

The MCLM 3002 series motion controllers from Faulhaber are easy to use single axis positioning controllers. They have been designed for the control of Faulhaber DC, brushless and linear motors. Supplied with an RS232 interface, and are ideal for applications that do not use a higher-level controller.

Features and Benefits

•4 Quadrant pulse width modulation (PWM)
•RS232 interface
•Compact design
•Precise position and speed control
•Many standard operating modes
•Integrated motor protection functions
•Simple USB configuration
•Easy to use software

Product Application Information

Can be used with linear DC servomotors with analogue Hall sensors.

Motion Manager

Motion Manager is a motion control software solution from Faulhaber enabling the control and configuration of drive systems with speed and motion controllers. RS232, USB and CAN interfaces are all supported.
The software provides access to the settings and parameters of connected motor controls and several analysis options are available.
The software also includes online help.
The “Faulhaber Motion Manager” software can be downloaded free of charge from www.faulhaber.com.

Faulhaber

About Faulhaber

Faulhaber is an independent family-run group of companies with its headquarters in Germany.
Founded in 1947 Faulhaber offers an extensive range of miniature and micro drive systems. Based on this technological diversity, Faulhaber designs drive solutions that are unique with their precision and reliability in small spaces. Their main areas of use include production automation and robotics, aerospace, optical systems as well as medicine and laboratory technology.
In addition to Germany, Faulhaber maintains development and production locations in Switzerland, USA, Romania and Hungary. Moreover, there are sales partners and subsidiaries in more than 30 countries around the world.

Datasheet

Communication and Function Manual

Technical Manual

Software Instructions
