Fluke I200S Current Clamp, AC Adapter, 200A ac AC Max - RS Calibrated

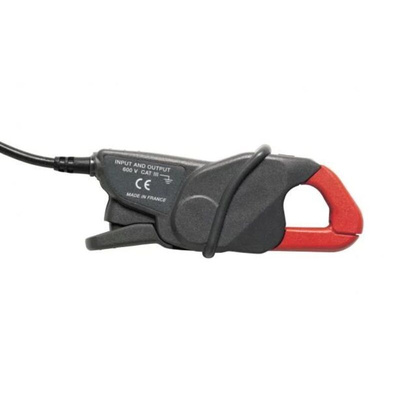

Fluke i200 and i200s AC Current Probe and Clamp

The i200 is a single range 200 A ac current clamp with current output via banana plugs. The i200 is compatible with all Fluke multimeters or any other current measurement device that accepts banana plugs.

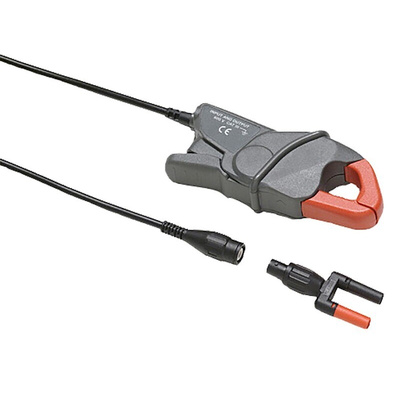

The i200s is a dual range 20 A and 200 A ac current clamp with voltage output via a BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools.

Shared features

Maximum current: 240 A AC
Useable frequency: 40 Hz → 10 KHz
Clamp opens to 21 mm
Maximum conductor Ø: 20 mm or 20 x 5 mm busbar

i200

Measurement Range: 0.5 → 240 A
Output Signal: 1 mA/A
Safety shrouded banana plugs allow use with most multimeters

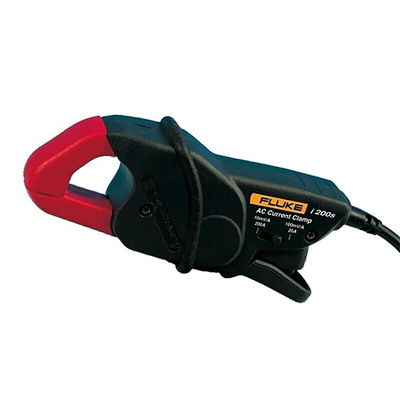

i200s

Measurement Range: 0.1 → 24 A and 0.5 → 240 A
Output Signal: 100 mV/A in the 20 A range and 10 mV/A in the 200 A range
Supplied with a BNC connector for use with oscilloscopes, ScopeMeters® and testing devices with a BNC input
Banana / BNC adapter for use with a multimeter

Standards

EN61010, CAT III 600 V

FLUKE Current Clamp, 2m Output Cable Length, 20mm Maximum Conductor Diameter - I200S

Monitor the electrical properties of your circuits with this current clamp from FLUKE. It's an AC measurement tool that reads charges on live conductors, eliminating the need to disconnect your equipment and saving you downtime. This unit comes with a banana plug adapter that connects to compatible multimeters (such as 616-1454 and 501-382), making it a versatile work partner. With an assessment range of between 0.1 and 240A, it's a hardworking option that can be used with both light-duty to heavy-duty applications.

Features & Benefits

• Accuracy of 1.5% + 0.5A gives you pinpoint readings
• Plastic clamp housing provides insulation to prevent electric shocks for improved safety
• Jaw opens up to 21mm to accommodate conductor diameters of 20mm, making it fit for large-sized cables
• Performs well in an operating temperature range of -10°C to +55°C, so it's suitable for demanding conditions

Applications

• HVAC systems
• Power distribution networks
• Industrial automation

How do I switch between current measurement ranges on this current clamp?

The unit has an easy-to-use control knob that lets you switch between 10mV/A/200A and 100mV/A/20A measurement ranges.
