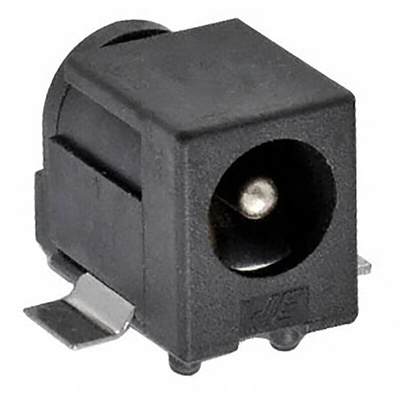

694108105102, Wurth Elektronik, WR-DC Right Angle DC Socket Rated At 5.0A, 24.0 V, PCB Mount, length 9.0mm, Gold, Tin, Разъем

1224881
Номер производителя: 694108105102Производитель: Wurth Elektronik
Цена за шт. (норма упаковки 5 шт)
516.00 руб. (С НДС) *
Количество 5+ 10+ 50+ 100+
Цена 516.00 руб. 492.00 руб. 468.00 руб. 438.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Wurth WR-DC SMT Mount DC Power Jacks - 6.4 mm Barrel Diameter

PCB SMT mount DC power jacks or barrel connectors with a 6.4mm barrel diameter. These SMT mount right angle DC power jacks have an internal normally closed single switch and internal pin diameters of 2.05 mm and 2.55 mm. The stamped contacts of these DC power jacks are gold plated and the housings are made from black UL94-V0 PA9T. Board guides are incorporated into the bottom of the housing to aid positioning on the PCB. Stock numbers 122-4878 and 122-4882 also have four soldering pads.

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

Техническая спецификация
pdfDatasheet
Диаметр контактов:
1.45мм
Длина:
9.0мм
Материал контактов:
Медный сплав
Номинал тока:
5.0A
Номинальное напряжение:
24.0 V
Ориентация корпуса:
Правый угол
Покрытие контактов:
Золото, Олово
Серия:
WR-DC
Тип монтажа:
Крепление на печатной плате
Тип разъема питания постоянного тока:
DC Socket
Ширина:
14.5мм
