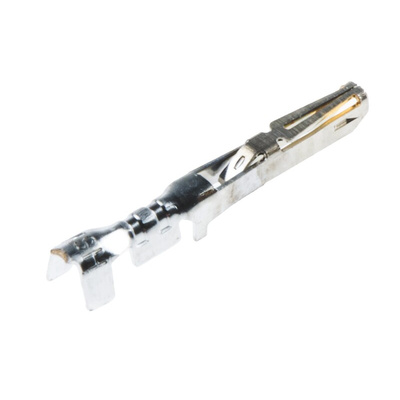

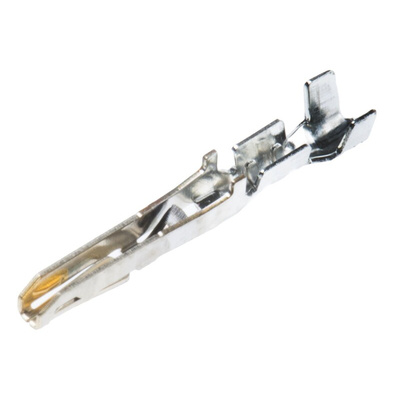

105300-1200, Molex Nano-Fit Series Female Crimp Terminal, 26AWG Min, 24AWG Max, Контакты

Molex 2.5 mm Nano-Fit Crimp Receptacle Terminals

Nano-Fit crimp receptacle terminals for use in the Nano-Fit 2.5 mm crimp receptacle housings. These crimp terminals have an interface with 4 points of contact that offer redundant, secondary current paths. When one part of the contact becomes degraded the other points of contact continue to carry the load. This feature enables increased current carrying capability, increased reliability and long-term performance. These Nano-Fit crimp receptacle terminals feature retention tangs and contact ribs to help maintain a stable contact. The ultra-low mating force of these Nano-Fit crimp terminals helps reduce operator fatigue

Features and Benefits

Multiple points of contact for improved reliability
Retention tangs and contact ribs for stable contact
Ultra-low mating force reduces fatigue

Applications

These Nano-Fit crimp terminals are for use in 105307 and 105308 series Nano-Fit 2.5 mm crimp receptacle housings.

Molex Crimp Terminal, Accommodates 26 to 24AWG, Copper Contact Material - Nano-Fit Series - 105300-1200

Keep your kit in constant contact with your electrical supply using this Molex crimp terminal. Its four-point interface ensures a continuous current path, even if one part of the contact fails. This gives it superior reliability and also extends its lifespan. Circuit building isn't tiring, thanks to the unit's low mating force of 3N that cuts down on operator fatigue. A retention tang and contact ribs give you the benefit of dependable connections.

Features & Benefits

• Flame-retardant housing to reduce the risk of fires spreading
• Gold-plated contacts support maximum electrical flow
• Halogen-free, so it emits minimal toxic fumes when heated

Applications

• Aerospace industry
• Hospitals and medical centres
• Industrial networking hubs
• Lighting systems

Is this crimp terminal insulated?

Yes, the unit has a minimum insulation resistance of 1,000mΩ, so you can trust it to protect against electric shocks.
