ILI-ON01-RED1-SC211., Intelligent LED Solutions LED Spotlight, 2.6 V, 30 x 40 mm, 1.3 W @ 700 mA, 650 mW @ 350 mA

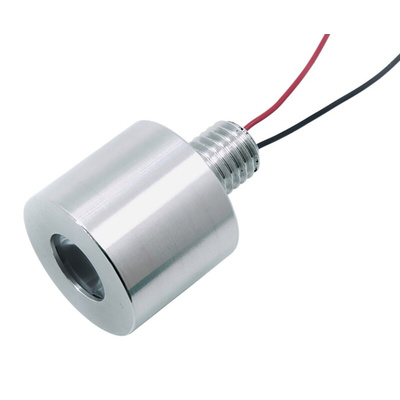

ILS OSLONeye LED Spotlight Modules

A range of compact mini-spotlights from ILS utilising Osram Opto OSLON SSL 80 ThinGan (UX:3) LEDs. These devices feature integrated heat-sinking with low thermal resistance to achieve cool running and high efficiency. An integral lens is used to produce a well-defined 12 degree beam angle and the threaded stud mounting ensures easy installation; connection is via 160mm flying leads. Typical applications for these mini-spotlights include cabinet, display and shelf lighting, accent and task lighting, and decorative retail lighting.

The ILS OSLONeye LED spotlight modules are available in a range of colours plus warm, neutral and cool white options. A kit version is also available allowing users to choose their own LED and LEDiL lens, see RS 122-5167.

• Ready-to-use module - simply apply power
• Operating current 50 to 700mA
• Integrated heat-sink and lens
• Up to 100,000 hour operating life to 70% of original brightness
• Mounting using integrated M12 threaded stud
• Compact size: 30mm diameter, 40mm overall length
• Supplied with 160mm connecting wires
