RS PRO Electronic DC Load, 3 → 300 W, 1 → 150 V, 0 → 60 A, Электронная нагрузка

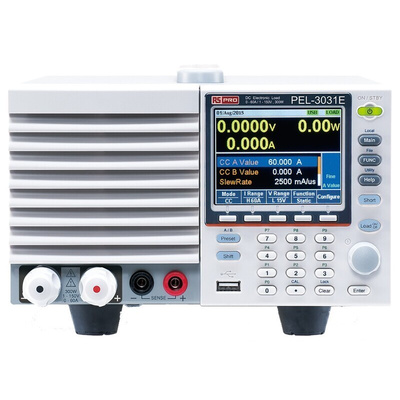

RS PRO PEL-3031E Programmable Single Output DC Electronic Load

RS PRO PEL-3031E is a programmable single-channel electronic load providing 300 W (1 V to 150 V / 60 A) current sink capabilities. It has seven operating modes, selected on the basis of product test requirements. Different test conditions are met by the Static function (to sink a constant current), the Dynamic function (to periodically switch between two sink conditions) and the Sequence function (to provide tests for more than two sink conditions).


The Sequence function can be divided into Normal Sequence and Fast Sequence. Setting parameters for multiple steps can simulate consecutive current changes of real load conditions. A special feature of the RS PRO PEL-3031E is its Soft Start function which enables determination of the rise time of current sink, to decide the required time to reach a set current, resistance or power value. Test adaptability is enhanced by the Timer function (Count Time and Cut Off Time).

Features and Benefits:

• CC, CV, CR, CP, CC+CV, CR+CV, CP+CV operating modes


• Static function/ Dynamic mode (periodically switch between two sink conditions)


• Programmable Normal Sequence/ Fast Sequence function (fastest 25 μs/step)


• Soft Start function allows operator to determine the rise time of current sink


• UVP function for battery discharge tests


• Timer function for Cut Off Time & Count Time


• Analog control terminals enable control from external voltage, external resistance and switch


• Supports peripheral devices and trigger function (TRIG OUT/TRIG IN)


• Remote Sense function compensates voltage drop from resistance of test leads


• OCP, OVP, OPP, OTP, RVP, UVP

Typical Applications

Electronic loads are a type of electronic power testing instrument used in a wide range of applications where the test and measurement of a power supply is required. These programmable devices are essential in ensuring various power supplies meet the required safety and compliance standards. Electronic loads offer various modes of control such as constant voltage, constant current, constant power, and constant resistance making them highly versatile and powerful instruments. They are commonly used in areas such as:

• Electronic components


• Batteries


• Chargers/portable chargers


• Adapters


• Power supply equipment


• Power products


• Laboratories


• Solar panel manufacturers

FAQs

What is the Voltage Measurement range?

0-150V


What is the Current Measurement range?

0-6A / 0-60A


What is the Power Measurement range?

300W




Why use an electronic load rather than a fixed value power resistor?


A fixed value power resistor is suitable for applications that require no closed loop control, however, they can present many limitations when testing power sources. Electronic loads have the ability to emulate various scenarios and actual devices that connect to your power source, whilst providing higher flexibility by allowing you to sink various levels of power and arbitrary profiles. Electronic loads reduce test time and cost by easily adapting to continuous changes in device test requirements, making them a highly effective solution to test power devices.


Why choose RS PRO?


RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Supplied with

User manual CD-ROM, programming manual, quick start guide, power cord, front terminal washers (x2), remote sense cables (red x1, black x1)

RS PRO Datasheet
