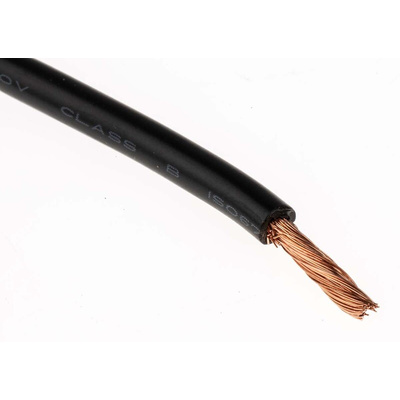

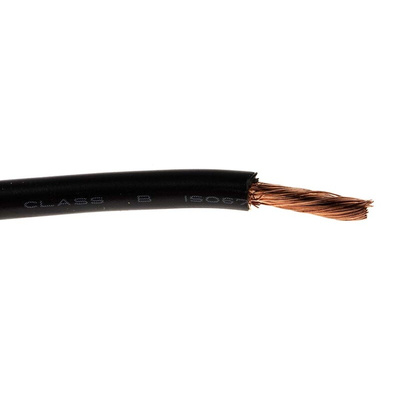

RS PRO Black 2 mm² Hook Up Wire, 115/0.15 mm, 30m, Провод

RS PRO 30 m Automotive Wire 2 mm² CSA Black Flame Retardant, 600 V, -40°C → +100°C

Where the nominal voltage is between 60 V DC / 25 V AC and 600 V DC / 600 V AC in road vehicle systems, use this flexible automotive wire from RS PRO. Its black polyvinyl chloride (PVC) outer sheath is flame-retardant, low-smoke and zero-halogen, meaning it won't release toxic gas in the event of a fire.

The wire can be used in temperatures between -40°C to +100°C. It is available in lengths of 30 metres and has an outer diameter of 3.3 mm, with a cross-sectional area of 2 mm².

Conforming to international standards including ISO6722-1 (for 60 V automotive cables) and VW-1 (for flame-retardant cables), this automotive wire from the RS PRO range is most often used in vehicles. You'll also find it used in heating or ventilation systems, too.

Features and Benefits

• Voltage rating of 600 V
• Single core automotive wire
• Core strands 115/0.15 mm
• Cross-sectional area of 3.3 mm²
• Conductor resistance of 9.42 Ω/km
• Operating temperature range of -40°C to +100°C
• Black sheath colour
• Polyvinyl chloride (PVC) sheath
• Flame-retardant
• Outer diameter of 3.3 mm

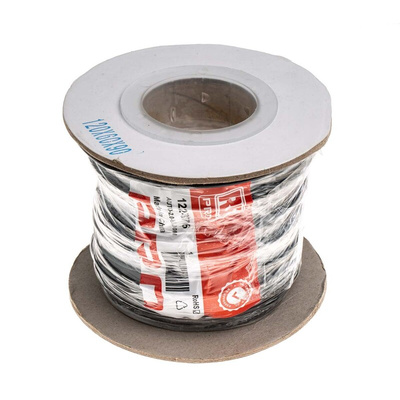

• Length of 30 m
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021
