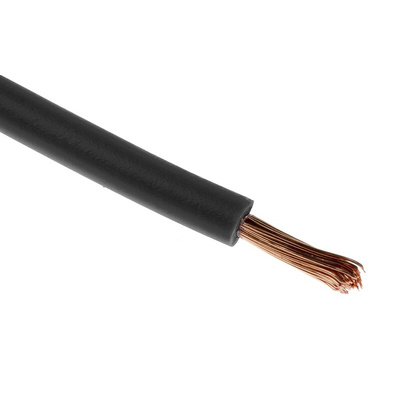

RS PRO Black 3 mm² Hook Up Wire, 175/0.15 mm, 30m, Провод

RS PRO 30 m Automotive Wire 3 mm² CSA Black Flame-Retardant, 600 V, -40 to +100°C

This flexible automotive wire from the RS PRO range is designed for use in road vehicle systems where the nominal voltage is between 60 V DC / 25 V AC and 600 V DC / 600 V AC.

The flame-retardant, low-smoke and zero-halogen cable has an outer sheath made of black polyvinyl chloride (PVC). This means the cable is protected in the event of a fire and won't release toxic gas when burned. This product is safe to use at temperatures ranging from -40°C to +100°C. It's available in a length of 30 metres and has an outer diameter of 4.1 mm, with a cross-sectional area of 3 mm².

The cable conforms to international standards including ISO6722-1 (for 60 V automotive cables) and VW-1 (for flame-retardant cables). Most commonly used for automotive purposes, this cable can also be found in heating and ventilation systems.

Features and Benefits

• Voltage rating of 600 V
• Single core automotive wire
• Core strands 175/0.15 mm
• Cross-sectional area of 3 mm²
• Conductor resistance of 6.15 Ω/km
• Operating temperature range of -40°C to +100°C
• Black sheath colour
• Polyvinyl chloride (PVC) sheath
• Flame-retardant
• Outer diameter of 4.1 mm
• Length of 30 m
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
