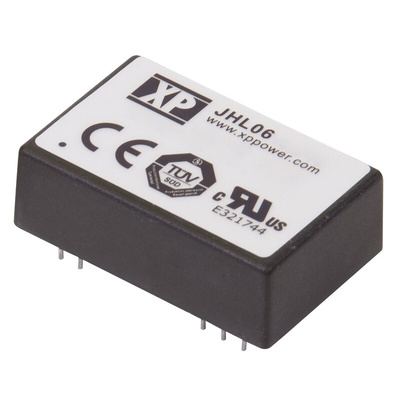

JHL0612S12, XP Power JHL06 DC-DC Converter, 12V dc/ 500mA Output, 10 → 17 V dc Input, 6W, Through Hole, +80°C Max Temp -20°C, Преобразователь

XP Power - JHL06 Series of Isolated DC-DC Converters

The JHL06 series offers a highly reliable range of single and dual output, 6 W, isolated DC-DC converters. The series features 4000 V ac reinforced insulation, 2 μA patient leakage current and is available in an industry standard DIP24 package. These compact DC-DC converters are internationally medical approved, meet IEC60601-1, 3rd Edition and EN55011 level A with no external components. The range also features 2 MOPP isolation at 250 V ac and a wide -20 °C to +80 °C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.

6 W, isolated DC-DC converters
Wide -40 °C to +80 °C operating temperature range
Internationally medical approved
Industry standard DIP24 package
4000 V ac reinforced insulation
2 μA patient leakage current
Meets IEC60601-1, 3rd Edition
2 MOPP isolation at 250 V ac

XP Power Isolated DC-DC Converters

Datasheet
