LED195-05WH-02, Moflash LED195 Series Red Flashing Beacon, 85 → 280 V ac, 85 → 380 V dc, Surface Mount, Wall Mount, LED, Маячок

Moflash Industrial LED Beacon - LED195 Series

Professional range of Moflash industrial LED beacons from the LED195 series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solutions are required. The LED beacons have two stages of alarm. Flashing or continuous modes can be changed via a jumper link.

Continuously rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure
Deep or Shallow base options

Moflash Red Flashing LED Beacon, 370V DC, 280V AC - LED195 Series - LED195-05WH-02

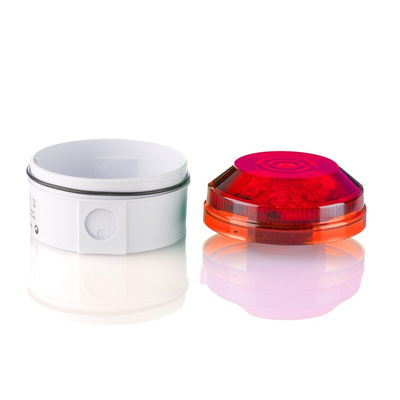

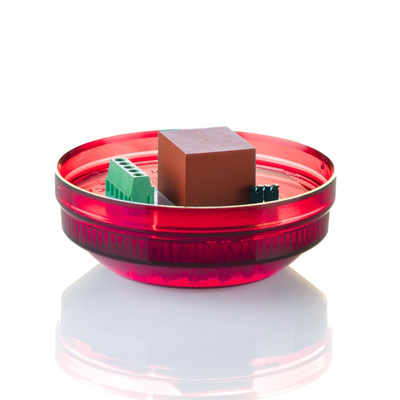

Mount this flashing beacon from Moflash to a wall or flat surface for bright and reliable hazard signalling. It has an LED (light-emitting diode) lamp that produces a bright light that's visible in most lighting conditions. It's also a triple-mode beacon, so you can quickly and easily change light patterns with the jumper link on the printed circuit board (PCB). One mode has a flashing rate of 60FPM (flashes per minute), while another mode has a flashing rate of 120FPM for a more rapid and urgent signal. You can also set the light to a continuous static mode for steady illumination.

Features & Benefits

• Compact base diameter of 104mm to take up minimal space
• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• 120° light output on a vertical axis for widespread visibility

Applications

• Laboratories
• Baggage claims
• Emergency vehicles
• Industrial automation

Is this beacon suitable for outdoor use?

Yes, this watertight beacon has an IP65 (ingress protection) rating, so it's built to withstand exposure to dust and low-pressure water jets. The O-ring slots around the base provide further protection against water.

LED195 Series Installation

LED195 v3 Datasheet

Moflash Signalling Product Range
