LED195-05WH-SB-04, Moflash LED195 Series Green Flashing Beacon, 85 → 280 V ac, 85 → 380 V dc, Surface Mount, Wall Mount, LED, Маячок

Moflash Industrial LED Beacon - LED195 Series

Professional range of Moflash industrial LED beacons from the LED195 series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solutions are required. The LED beacons have two stages of alarm. Flashing or continuous modes can be changed via a jumper link.

Continuously rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure
Deep or Shallow base options

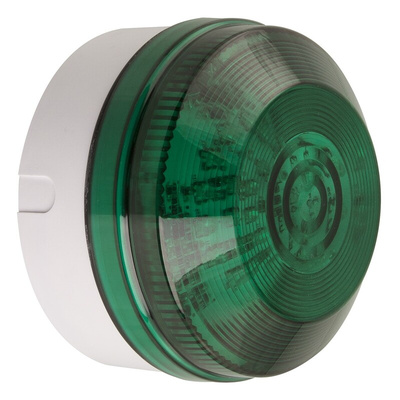

Moflash Green LED Beacon, 40 to 380V DC, 85 to 280V AC - LED195 Series - LED195-05WH-SB-04

Use this green LED (light-emitting diode) beacon from Moflash to provide your workplace with a visible signal that working conditions are safe. The versatile beacon can be set to a continuous light mode, a standard flashing mode at 60FPM (flashes per minute) or a flashing mode at 120FPM for a more urgent signal. It's suitable for wall or surface mounting for flexible installation. The beacon has an IP65 (ingress protection) rating, meaning it's protected from dust and low-pressure water jets. A green beacon like this one is frequently paired with a red beacon to create a stop-and-go signal system in industrial environments.

Features & Benefits

• Low current consumption of 35mA at 230V AC (alternating current) means it's energy-efficient
• Polycarbonate (PC) lens and ABS (acrylonitrile butadiene styrene) base are UV (ultraviolet) stable to prevent discolouration and warping in sunlight
• Wide operating temperature range of -25ºC to +55ºC for use in demanding environments

Applications

• Industrial vehicles
• Machine automation

How wide is this beacon's beam?

This beacon has a 120° beam around the vertical axis to provide a wide signal spread, making it highly visible.
