LED-TL-05-02, Moflash LED TL Series Red Steady Beacon, 40 → 380 V dc, 85 → 280 V ac, Surface Mount, Wall Mount, LED, Маячок

Moflash Industrial LED Traffic Light - TL Series

Professional range of Moflash industrial LED beacons from the TL series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solution are required. Suitable applications include car park management, factory traffic control, automatic gate or door control systems. The beacons require external input signals or PLC controls to switch visual indication functions. Suitable for indoor or outdoor applications. The beacons can be surface mounted onto any flat vertical surface or conduit boxes.

Continuously rated
IP65 Rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure

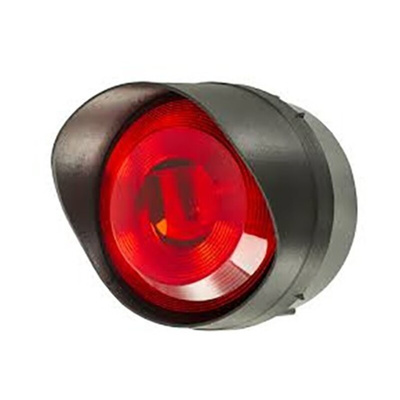

Moflash Red Traffic Light LED Beacon, 40 to 380V DC, Surface and Wall Mount - LED TL Series - LED-TL-05-02

This traffic-light beacon from Mofash is the ideal option for your traffic-management signalling needs. Thanks to 36 high-output light-emitting diodes (LEDs), this unit gives a prominent display that's visible both indoors and outdoors. The beacon has a modular design so it can be assembled with other units to create a multiple indication system. It's also compatible with programmable logic controllers (PLCs) so you can easily manage its output. As this unit has a sturdy ultraviolet (UV) stable acrylonitrile butadiene styrene (ABS) construction, it's weatherproof and suitable for use even under harsh conditions.

Features & Benefits

• Low current consumption of 35 mA for energy efficiency
• Flexible wall and surface mounting options
• UV stable polycarbonate lens and shroud for even light distribution and protection from sunlight
• IP65 (ingress protection) rating indicates it can withstand dust and high-pressure water jets
• Light weight of 0.26kg to minimise strain on your system

Applications

• Car park management
• Automatic gate and door control systems

Can I use this beacon in extreme temperatures?

This unit delivers reliable performance at temperatures ranging from -25°C to +55°C, so you can use it in challenging industrial situations.
