LED-TL-02-02-04, Moflash LED TL Series LED Beacon, 2 Lights, 20 → 30 V, Wall Mount

Moflash Industrial LED Traffic Light - TL Series

Professional range of Moflash industrial LED beacons from the TL series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solution are required. Suitable applications include car park management, factory traffic control, automatic gate or door control systems. The beacons require external input signals or PLC controls to switch visual indication functions. Suitable for indoor or outdoor applications. The beacons can be surface mounted onto any flat vertical surface or conduit boxes.

Continuously rated
IP65 Rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure

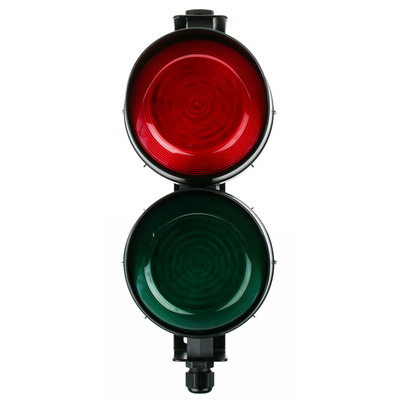

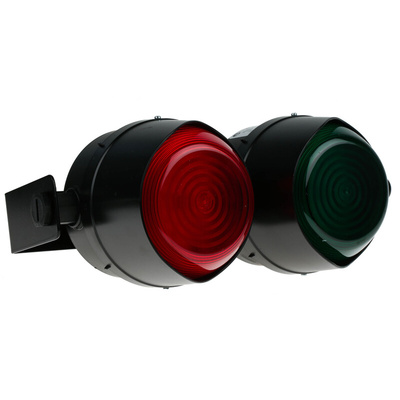

Moflash Traffic Light LED Beacon in Red/Green, 20V to 30V AC/DC - LED TL Series - LED-TL-02-02-04

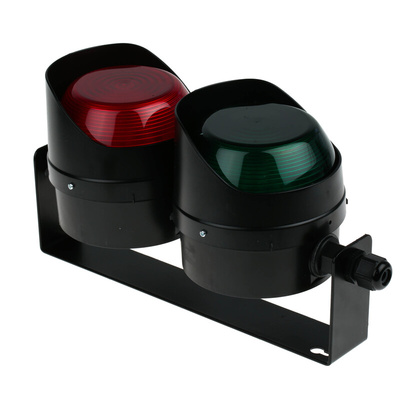

Make traffic management simpler with this effective LED (light-emitting diode) beacon from Moflash. It's made of an ultraviolet (UV) stable ABS (acrylonitrile butadiene styrene) material that's resistant to impact and weathering to ensure a long service life. The beacon comes fully assembled, pre-wired and mounted on wall brackets for quick and simple installation. It has one red and one green light element, each with 36SMT (surface-mount technology) LEDs (light-emitting diodes) to provide bright illumination.

Features and Benefits

• Low current consumption of 240mA for improved energy efficiency
• Compatible with external input signals and programmable logic controllers (PLCs) for simple configuration
• Total weight of 1.5kg for ease of handling
• Angle movement of 180° for simple adjustment

Applications

• Car park management
• Factory traffic control
• Automated gate and door control systems

Can I use this beacon safely in damp environments?

The beacon has an IP65 (ingress protection) rating, meaning it's protected against dust and low-pressure water jets. The cable termination is also located inside the enclosure for added protection against moisture.
