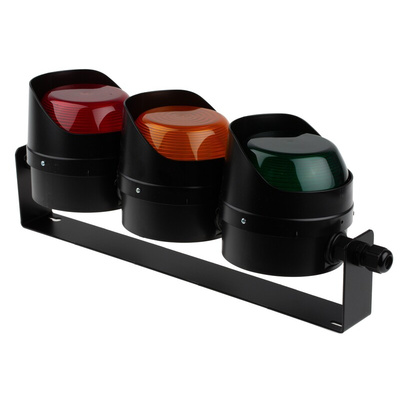

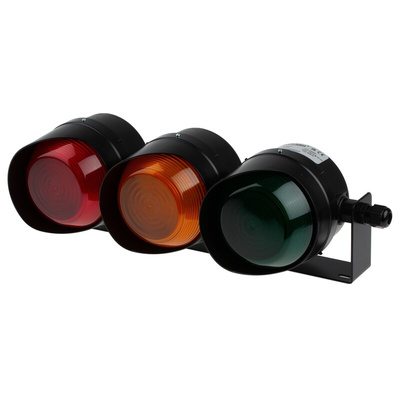

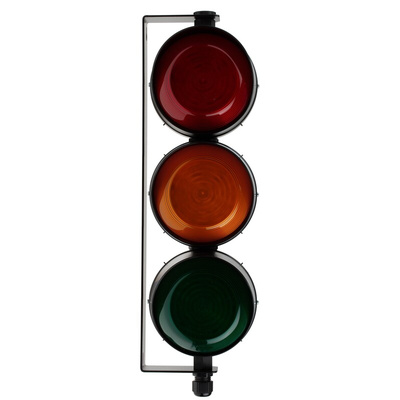

LED-TL-01-02-01-04, Moflash LED TL Series LED Beacon, 3 Lights, 8 → 20 V ac/dc, Wall Mount

Moflash Industrial LED Traffic Light - TL Series

Professional range of Moflash industrial LED beacons from the TL series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solution are required. Suitable applications include car park management, factory traffic control, automatic gate or door control systems. The beacons require external input signals or PLC controls to switch visual indication functions. Suitable for indoor or outdoor applications. The beacons can be surface mounted onto any flat vertical surface or conduit boxes.

Continuously rated
IP65 Rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure

Moflash Traffic Light Beacon, LED, 8 to 20V AC/DC - LED TL Series - LED-TL-01-02-01-04

This triple LED (light-emitting diode) beacon assembly from Moflash provides clear, colour-coordinated signalling. It's designed for use as a traffic light to enhance road safety on private roads and in factories. It has one red light to tell traffic to stop, one amber light to signal preparation and one green light to tell traffic to go. The three LEDs have a low current consumption of just 720mA at 12V DC, ensuring energy-efficient operation and a long service life.

Features & Benefits

• PC (polycarbonate) lens and shroud material prevents ultraviolet (UV) rays from fading the lens colour
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Semi-circular light ensures signals are visible at a 180° angle for wide visibility
• Built-in wall bracket for quick and secure mounting to a wall or other surface

Applications

• Factory vehicle traffic
• Car parks
• Automated gates

Can this signal tower withstand cold outdoor temperatures?

Yes, this signal tower can operate in temperatures as low as -25°C. This means you can leave it permanently outdoors, even in winter.

LED TL Series

Installation Sheet - LED-TL-01-02-01-04

Moflash Signalling Product Range
