RS PRO 1.65kVA Site Transformer, 230V ac Primary, 110 (55V Secondary, 2 x 16A O/P, Трансформатор

RS PRO, 1.65 kVA Safety Transformer, 230 V AC, 2 x 16 A

This safety transformer from RS PRO is designed to provide a safe power supply for tools and other appliances in garages or industrial settings. The continuous single-phase transformer has a 230 V AC input and 110 V AC output, so you can step the voltage down. This means you're in control in the event of a hazard such as a cable being cut.

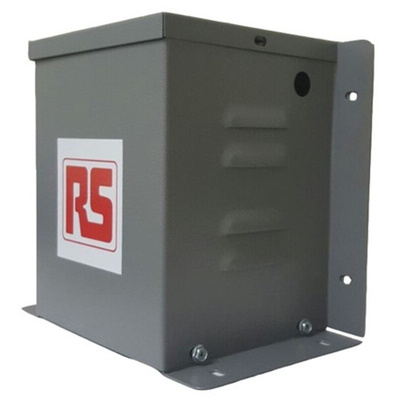

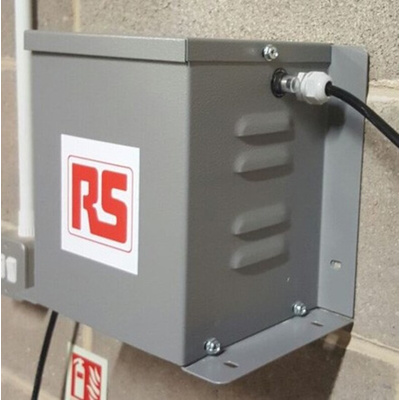

The transformer features a 110 V secondary winding centre-tapped to earth for additional safety. There are mounting flanges and conduit entry points to make for easy installation and use. A thermal magnetic trip reduces the risk of overload. The device is housed in a robust steel enclosure that's IP22-rated, so your fingers can't get inside and water can't drip in.

Features and Benefits

• Length of 270 mm
• Depth of 244 mm
• Width of 228 mm
• Maximum operating frequency of 50 Hz
• Minimum operating frequency of 50 Hz
• Power rating of 1.65 kVA
• BS EN 60309 socket
• Primary voltage rating of 240 V AC
• Secondary voltage rating of 0 to 240 V AC
• Output current of 2 x 16 A
• Wall-mounting type

RS Pro Datasheet
