RS PRO 750VA Site Transformer, 230V ac Primary, 230V Secondary, 1 x 13A O/P, Трансформатор

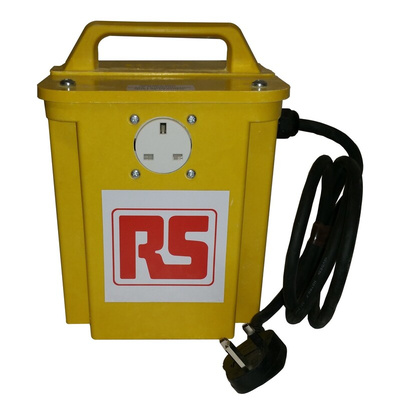

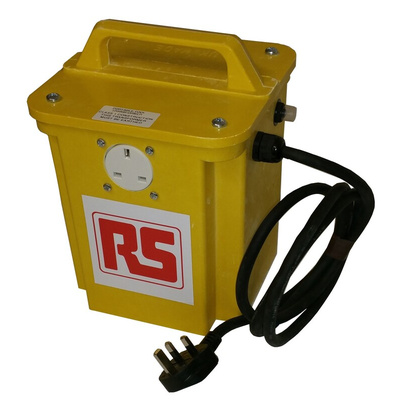

RS PRO, 750 VA Portable Isolation Transformer, 230 V AC, 1 x 13 A

In need of a temporary solution for isolating a standard 230 V mains voltage supply? This 750 VA portable isolation transformer from RS PRO is well-suited to building sites and other industrial settings for preventing overloading and reducing the risk of electric shock.

This stand alone unit is housed in a robust, glass-fibre-reinforced plastic enclosure (GRP) that's tough as well as lightweight (the total weight is 10 kg). An inbuilt thermal-magnetic trip minimises the chances of overload. The transformer is fitted with a BS1363 three-pin plug socket.

As part of the RS PRO range, this transformer has been extensively tested by our engineers for reliability and consistency. It complies with standards BS EN 61558 and BS EN 61558-20-23 (safety of transformers and power supply units for construction sites) as well as BS EN 60529 (ingress protection).

Features and Benefits

• Portable isolation transformer
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 230 V
• Power rating of 750 VA
• Output current of 1 x 13 A
• Socket type of BS1363
• Weight of 10 kg
• Dimensions of 195 mm (L) x 195 mm (W) x 265 mm (D)
• Stand alone unit
• Minimum operating frequency of 50 Hz
• Maximum operating frequency of 60 Hz
• Conforms to BS EN 61558, BS EN 61558-20-23, BS EN 60529 safety standards
• RoHS compliant for restricted hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro portable Isolation Transformer Datasheet

Declaration of Conformity
