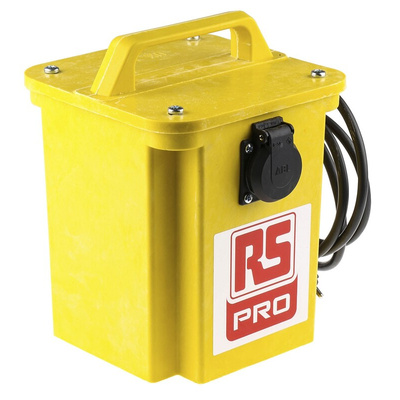

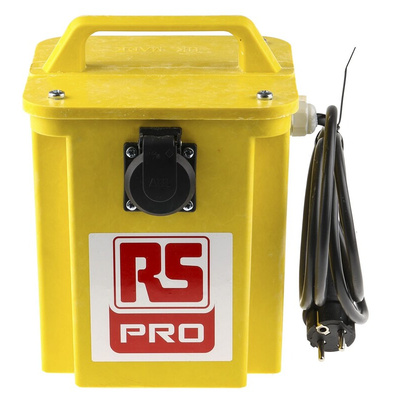

RS PRO, 1.5 kVA Portable Isolation Transformer, 230 V ac, 2 x 16 A

This standalone RS PRO portable isolation transformer can be used to isolate a standard European 230 V mains voltage supply. It has a high-quality design that’s light, robust and is made with your safety in mind.

The separating transformer has a thermal-magnetic trip that reduces any chance of overload. This keeps you safe from electric shock by isolating your connected tools from the power supply, while also being easy to reset by hand. The transformer is encased in GRP (glass fibre-reinforced polyester), is easy to carry and is fitted with a 16 A Schuko plug for your connection.

This type of safety site transformer is commonly used with power tools in industrial settings. It’s produced in the UK and conforms to BSEN 61588 standards, complying with reduced low-voltage regulations for your safety.

Features and Benefits

• Portable isolation transformer
• 5-minute short time
• Primary voltage rating of 230 V
• Secondary voltage rating of 230 V
• Power rating of 1.5 kVA
• 2 x 16 A output current

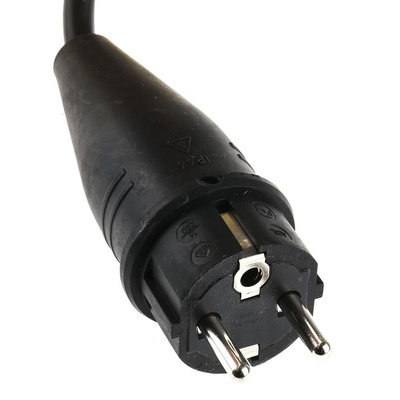

• Schuko plug and socket type
• Weight of 18 kg
• Dimensions of 350 mm x 242 mm x 353 mm
• Operating frequency range of 50 - 60 Hz
• Stand alone mounting

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Continuous power rating = 1.5 kVa
Intermittent power rating = 3 kVa (5 min on, 15 min off)

RS Pro Portable Tool Transformer Datasheet

Declaration of Conformity

RS PRO Datasheet
