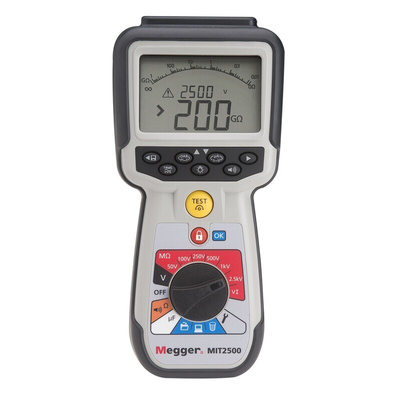

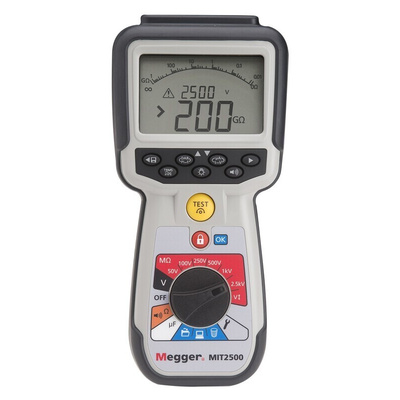

MIT2500 Insulation Tester

MIT2500 insulation & continuity tester has been designed for the Electrical and Industrial test applications. Where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The tester offers both fixed range voltages of 50 V, 100 V, 250 V, 500 V, 1000 V and 2500 V. And a variable range that allows any voltage between 50 V and 2500 V to be "dialled in".
MIT2500 features a redesigned case, back-stand and 6 cell battery compartment. It also offers a guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.

Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
Guard terminal for high-resistance accuracy
Adjustable insulation test voltage from 50 V to 2500 V
Stabilised insulation test voltage
Single range, faster continuity testing from 0.01 Ω to 1 MΩ
Live circuit detection and protection
CAT IV 600 V applications
New case design with optional magnetic hanging strap
IP54 Rated
ABS housing

Standards

IEC 61010 & EN61557

Supplied with

2.5 kV rated test leads fitted with medium size crocodile clips and 1 kV rated test leads with probes and clips
