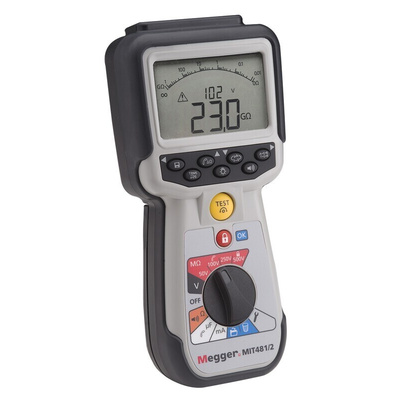

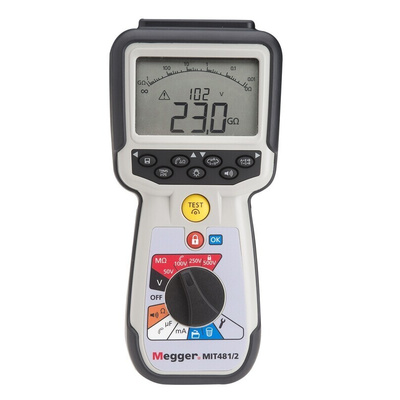

1006-341, Megger MIT481, Insulation Tester, 500V, 200GΩ, CAT IV UKAS Calibration, Измеритель сопротивления изоляции

Megger MIT480 mk2 Series Insulation & Continuity Testers

MIT480 mk2 Series insulation & continuity testers replace the original MIT480 range. Designed for the Telecommunication and Cable testing markets. The tester features a redesigned case, back-stand and 6 cell battery compartment with separate fuse access.

Features and Benefits

Insulation testing up to 500 V and 100 GΩ range in a hand held instrument
Three wire connection for tip, ring and earth connection
Gated access to 500 V to prevent accidental damage
Adjustable insulation test voltage from 10 V to 500 V
New case design with optional magnetic hanging strap
600 C TRMS AC and DC voltage measurement
Live circuit detection and protection
Timed Testing: Automatically test to a time limit
Flexible silicone test leads prevent measurement errors on GΩ ranges above 5 GΩ
CAT IV 600 V
IP54 Rated
ABS Housing
Bluetooth® and software available on MIT485/2

Supplied with

Silicone test lead set, SP5 switched probe, AA Batteries x 6, hard carry case and information CD

Datasheet
