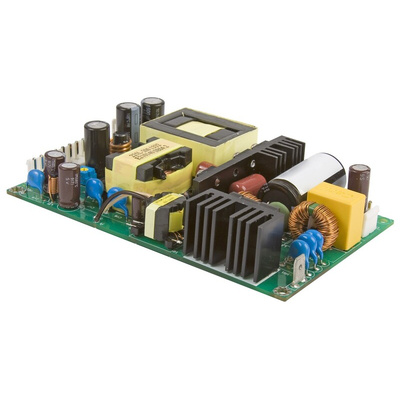

XP Power Switching Power Supply, ECP225PS12-A, 12V dc, 18.75A, 225W, 1 Output, 80 → 264V ac Input Voltage, Источник питания

XP Power - ECP225 Series of AC-DC Power Supplies

The ECM225 series from XP Power offers an excellent range of single output, 225 W power supplies, all of which have been ITE and medically approved. These compact, open frame, power supplies all feature 150 W convention cooled rating, 225 W force cooled rating and high efficiency of up to 94%. The range also features less than 0.5 W no load input power and is packaged in a 2.5” x 5” footprint and a 1” ultra-low profile height.

225 W, open frame, single-output power supplies
ITE and medically approved
High power density
<0.5 W no load input power
Low earth leakage current
2.5” x 5” packaging footprint
1” Ultra-low profile height
150 W convention cooled rating
225 W force cooled rating
High efficiency of up to 94%

Switch Mode - XP Power

ECP-A Series 225W PSU Datasheet
