XP Power Switching Power Supply, ECS100US12, 12V dc, 8.3A, 100W, 1 Output, 120 → 370 V dc, 80 → 264 V ac, Источник питания

XP Power AC To DC Power Supply

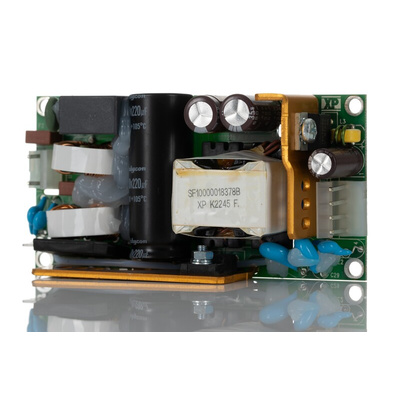

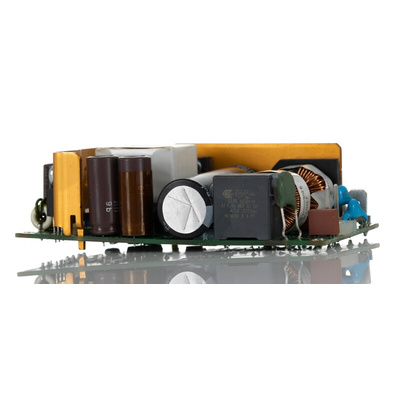

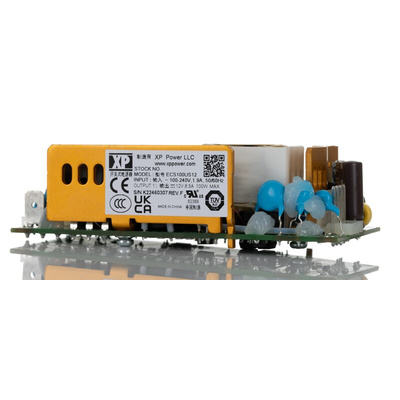

The XP Power ECS series 100W rated AC to DC power supply with a single output has the output current rating of 8.3A at 12VDC. It has a universal input supply voltage rating from 80VAC to 264VAC.

Features and Benefits

Compact size and open frame
Convection-cooled
Highly reliable
IT and medically approved
Low leakage current
No load input power <0.5W
Operating temperature ranges between -20°C and 70°C
Packaging footprint 4in x 2in
Up to 90% efficiency

Certifications

ANSI/AAMI ES60601-1
Class I and II construction
CSA22.2 No.60601-1 per UL
EN55022 and EN55011, level B conducted
EN55022 level A radiated
EN60601-1
EN60601-1, 30% 500ms, 60% 100ms, 100% 10ms, 100% 5000ms, Perf criteria A, A (with 50% load), A, B
EN60601-1-2
EN60950-1
EN61000-3-2, class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60% 100ms, 100% 5000ms, Perf criteria A, B, B
EN61000-4-2, level 3 Perf criteria A
EN61000-4-3, 10V/m Perf criteria A
EN61000-4-4, level 3 Perf criteria A
EN61000-4-5, level 3 Perf criteria A, SEMI F47
EN61000-4-6, 10 V Perf criteria A
EN61204-3
FCC 20780
UL60950-1
