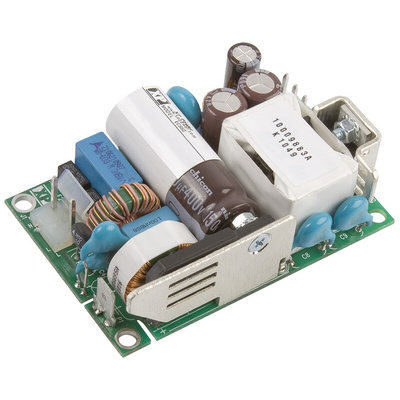

XP Power Switching Power Supply, ECS60US24, 24V dc, 2.5A, 60W, 1 Output, 120 → 370 V dc, 80 → 264 V ac, Источник питания

XP Power AC To DC Power Supply

The XP Power ECS series 60W rated AC to DC power supply with a single output has the output current rating of 2.5A at 24VDC. It has a universal input supply voltage rating from 80VAC to 264VAC.

Features and Benefits

Convection-cooled
Highly reliable
IT and medically approved
Low leakage current
No load input power <0.3W
Operating temperature ranges between -20°C and 70°C
Packaging footprint 2in x 3in
Ultra-low profile 0.95in height and open frame
Up to 90% efficiency

Certifications

ANSI/AAMI ES60601-1
Class I and II construction
CSA22.2 No.60601-1 per UL
EN55022 and EN55011, level B conducted
EN55022 level A radiated
EN60601-1
EN60601-1, 30% 500ms, 60% 100ms, 100% 10ms, 100% 5000ms, Perf criteria A, A (with 50% load), A, B
EN60601-1-2
EN60950-1
EN61000-3-2, class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60% 100ms, 100% 5000ms, Perf criteria A, B, B
EN61000-4-2, level 3 Perf criteria A
EN61000-4-3, 10V/m Perf criteria A
EN61000-4-4, level 3 Perf criteria A
EN61000-4-5, level 3 Perf criteria A, SEMI F47
EN61000-4-6, 10 V Perf criteria A
EN61204-3
FCC 20780
UL60950-1

Datasheet

CE Declaration of Conformity ECS60 – XP Power
