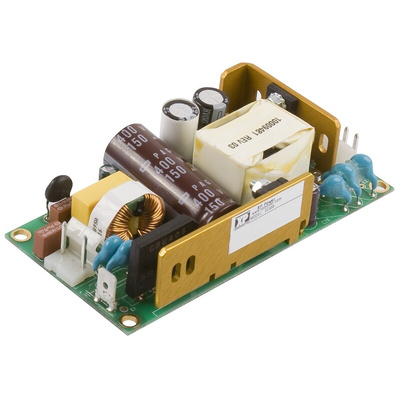

XP Power Switching Power Supply, ECS65US18, 18.5V dc, 3.4A, 65W, 1 Output, 120 → 370 V dc, 80 → 264 V ac, Источник питания

XP Power - ECS65 Series of AC-DC Power Supplies

The ECS65 series from XP Power offers an excellent range of 65 W, open frame power supplies, all of which have been IT and medically approved. These highly reliable, compact power supplies all feature low leakage current and less than 0.3 W no load input power. The range has small, 2” x 3” footprint, an ultra-low profile 0.9.5” height and all of the power supplies feature either a class I or class II construction. These power supplies are all convection-cooled with an efficiency of up to 90% and an operating temperature from -20 °C to +70 °C.

65 W, AC-DC power supplies
IT and medically approved
-20 °C to +70 °C Operating temperature
<0.3 W no load input power
2” x 3” packaging footprint
Ultra-low profile 0.95” height
Up to 90% efficiency
Open frame

Switch Mode - XP Power

ECS65US18 Datasheet
