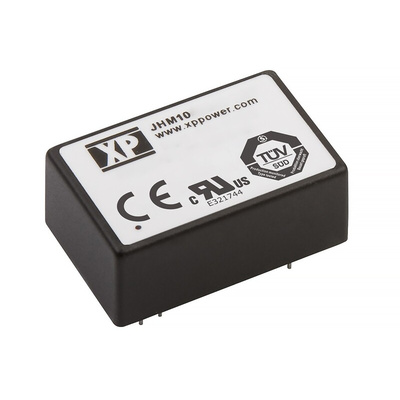

JHM1005S05, XP Power JHM DC-DC Converter, 5V dc/ 2A Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C Min, Преобразователь

XP Power - JHM10 Series of Isolated DC-DC Converters

The JHM10 series from XP Power offers a highly reliable range of 10 W, isolated DC-DC converters. The series has been designed in an industry standard DIP-24 package, features 4000 VAC reinforced insulation and has been internationally medically approved. The range attributes 2 μA patient leakage current, a wide operating temperature of -40 °C to +80 °C and safety approved to IEC60601-1, 3rd edition.

10 W, isolated DC-DC converters
4000 VAC reinforced insulation
Meets international medical approvals
2 μA patient leakage current
-40 °C to +80 °C Operating temperature
IEC60601-1, 3rd edition safety approvals
DIP-24 package
EN55011 Level A with no external components
Board mount

XP Power - DC-DC Converters

Datasheet
