XP Power Switching Power Supply, ECP130PS28, 28V dc, 4.64A, 130W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

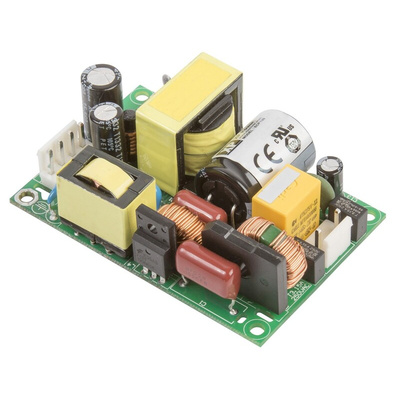

XP Power - ECP130 Series Switch Mode Power Supply

XP Power ECP130 series of 130 W power supply provides the user with a low cost chassis mount power solution to a wide variety of applications. The ECP130 series offers an output voltage of 12 to 48 V, with a very low load input power of <0.3 W. The series has been designed to adhere to the latest environmental legislation.

The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.

Features and Benefits

100 W convection / 130 W forced-cooled rating.
Medical & ITE approved.
0.5 W no load input power.
Up to 95% efficiency.
2" x 3" footprint, with a low 1.1" profile.
