XP Power Switching Power Supply, EPL225PS48 , 48V dc, 4.69A, 225W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

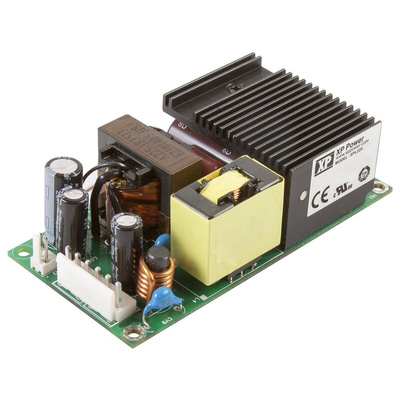

XP Power - EPL225 Series Switch Mode Power Supply

XP Power EPL225 series of switch mode power supplies has been designed to maximise efficiency across the load range, while minimising no load power consumption. This allows for optimal heat dissipation, which leads to a reduction in running costs and keeps the installation to adhere to latest environmental goals & legislation.

The XP Power EPL225 series is a small but versatile series which can be adopted into a wide range of ITE & industrial applications.

Features and Benefits

150 W convection / 225 W forced-cooled ratings.
ITE approved.
High-power density.
12 V output fan.
Up to 95% efficiency.
2" x 4" footprint, with a 1.26" low profile.

Switch Mode - XP Power

Datasheet
