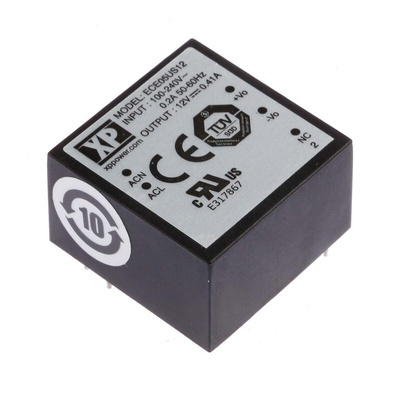

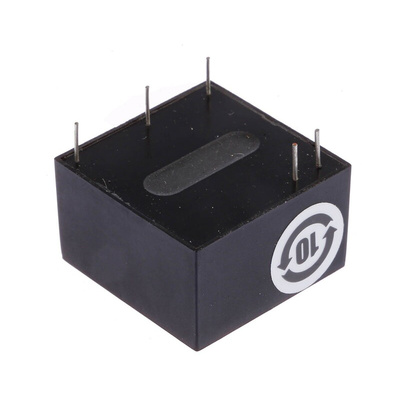

XP Power Switching Power Supply, ECE05US12, 12V dc, 410mA, 5W, 1 Output, 120 → 370 V dc, 85 → 264 V ac, Источник питания

XP Power AC To DC Power Supply

The XP Power ECE series 5W rated AC to DC power supply with a single output has the output current rating of 0.41A at 12VDC. It has a universal input supply voltage rating from 85VAC to 264VAC. The power supply range also attributes less than 0.3W no-load input power and peak load capability.

Features and Benefits

Efficiency is 82%
Encapsulated PCB mount
No external components required
No external components required
No load input power <0.3W
Operating temperature ranges between -25°C and 70°C
Peak load capability
Ultra-compact size

Certifications

EN61000-4-4, level 3 Perf criteria A (EFT/burst)
CSA22.2 No. 234 per UL
EN55022, level B conducted and radiated
EN60950-1
EN61000-3-2
EN61000-3-3
EN61000-4-11, 30% for 10ms, 60% for 100ms, 100% for 5000ms Perf criteria A, B, B (dips and interruptions)
EN61000-4-2, level 3 Perf criteria A (ESD immunity)
EN61000-4-3, 10 V/m 80% mod Perf criteria A (radiated immunity)
EN61000-4-5, installation class 3, Perf criteria A
EN61000-4-6, 10Vrms Perf criteria A (conducted immunity)
EN61000-4-8, 10A/m Perf criteria A (magnetic fields)
UL60950-1
