XP Power Switching Power Supply, HDS1500PS24, 24V dc, 62.5A, 1.5kW, 1 Output, 90 → 264V ac Input Voltage, Источник питания

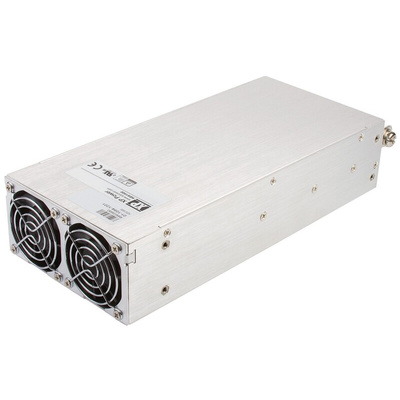

XP Power AC To DC Power Supply

The XP Power HDS 1500W rated AC to DC power supply with a single output has an output current rating of 62.5A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC. It is a highly reliable, enclosed power supply that features a programmable output voltage and current from 0 to 105%. The range also attributes high power density and very high efficiency of up to 92%. It offers the users both the output voltage and output current programming (0 to 105%) via resistance, voltage or I2C bus in very high efficiency, high power density 3kW chassis mount package.

Features and Benefits

Current sharing
High power density
Operating temperature ranges between -20°C and 60°C
Parallel operation
Programmable output current from 0 to 105%
Programmable output voltage from 0 to 105%
Remote ON/OFF
Remote sense and a power OK signal

Certifications

C22.2 No.60950-1
EN55022 class B
EN55024
EN60950-1
EN61000-3-2 class A
EN61000-3-3
EN61000-4-2
UL60950-1
