XP Power Switching Power Supply, HDS3000PS48, 48V dc, 62.5A, 3kW, 1 Output, 90 → 264V ac Input Voltage, Источник питания

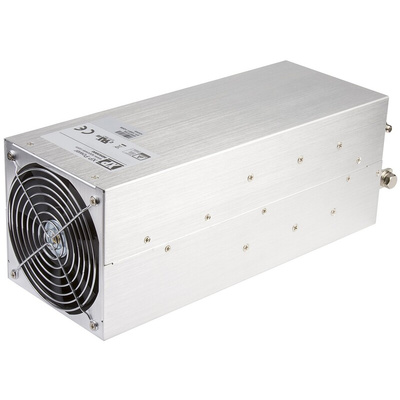

XP Power AC To DC Power Supply

The XP Power HDS series 3000W single output AC to DC power supply has an output current rating of 62.5A at 48VDC. It has a universal input supply voltage rating from 90VAC to 264VAC. It has dimensions of 5in x 5in x 14.41in.

Features and Benefits

Chassis mount package
Current sharing
Fully featured signals and controls
High efficiency up to 92%
High power density
Highly reliable
Operating temperature ranging between -20°C and 60°C
Parallel operation
Programmable output current from 0 to 105%
Programmable output voltage from 0 to 105%
Remote ON/OFF
Remote sense and a power OK signal

Certifications

C22.2 No.60950-1
EN55022 Class B
EN55024
EN60950-1
EN61000-3-2 Class A
EN61000-3-3
EN61000-4-2
UL60950-1

Datasheet
