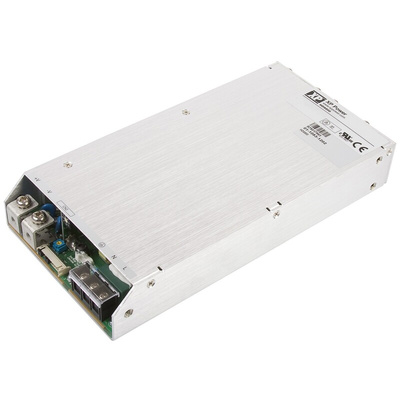

XP Power Switching Power Supply, HDS800PS12, 12V dc, 66.7A, 800W, 1 Output, 127 → 370 V dc, 90 → 264 V ac, Источник питания

XP Power AC To DC Power Supply

The XP Power HDS series 800W single output AC to DC power supply has an output current rating of 66.7A at 12VDC. It has a universal input supply voltage rating of 90VAC to 264VAC.

Features and Benefits

Chassis mount package
Fully featured signals and controls
High efficiency is 89%
High power density
Highly reliable
Operating temperature ranging between -20°C and 70°C
Parallel operation
Profile is 1U
Programmable output current from 0 to 105%
Programmable output voltage from 0 to 105%

Certifications

CSA C22.2 No. 60950-1
EN55022 Class B conducted and radiated
EN55024, >95% 10ms, 30% 500ms, >95% 5000ms, Perf criteria A, A, B
EN60950-1
EN61000-3-2 Class A
EN61000-3-3
EN61000-4-2, ±4 kV contact, ±8kV air discharge, Perf criteria A
EN61000-4-3, 3 V/m, Perf criteria A
EN61000-4-4, level 2, Perf criteria A
EN61000-4-5, installation Class 3, Perf criteria A
EN61000-4-6, 3 V, Perf criteria A
EN61000-4-8, 1 A/m, Perf criteria A
UL60950-1

Datasheet
