XP Power Switching Power Supply, SHP650PS48-EF, 48V dc, 13.5A, 655W, 1 Output, 80 → 264V ac Input Voltage, Источник питания

XP Power AC To DC Power Supply

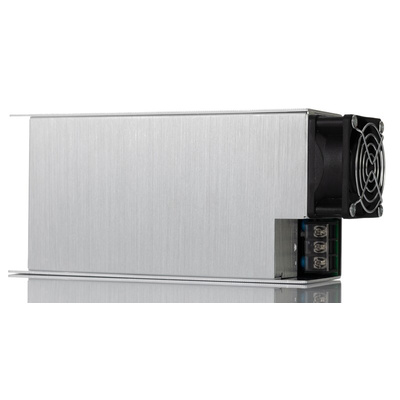

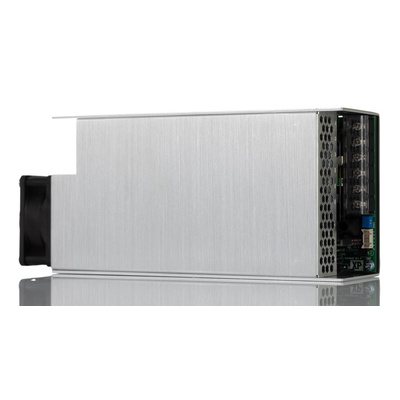

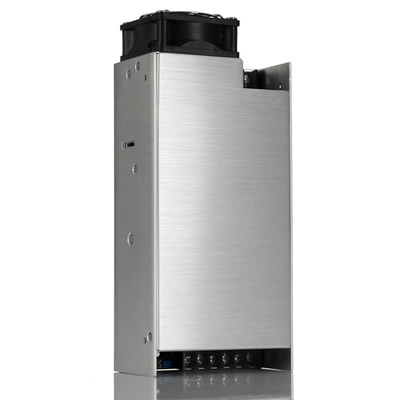

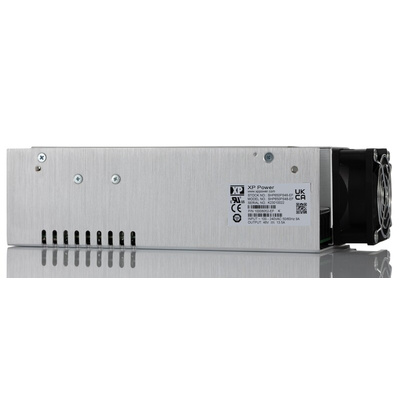

The XP Power SHP series 655W single output AC to DC power supply has an output current rating of 13.5A at 48VDC. It has a universal input supply voltage rating from 85VAC to 264VAC. The power supply features a variable fan speed for noise reduction.

Features and Benefits

AC OK
Active current share
Compact
High efficiency of 85%
Operating temperature ranging between -40°C and 70°C
Remote ON/OFF
Rugged construction
Variable fan speed for noise reduction

Certifications

CSA 22.2 No. 60950-1
EN55022 Class A radiated
EN55022 Class B conducted
EN60950-1
EN61000-3-2 Class A, 650W: Class C for loads =20% 350 and 1000 W: Class C for loads =10%
EN61000-3-3
EN61000-4-11, 30% 10ms, 60% 100ms, 100% 5000ms, Perf criteria A, B, B
EN61000-4-2, level 3 contact, level 3 air, Perf criteria A
EN61000-4-3, level 3 Perf criteria A
EN61000-4-4, level 3 Perf criteria A
EN61000-4-5, installation Class 3, Perf criteria A
EN61000-4-6, level 3, Perf criteria A
IEC60950-1 CB report
SEMI F47
UL60950-1
