XP Power Switching Power Supply, VCS100US24, 24V dc, 4.17A, 100W, 1 Output, 127 → 370 V dc, 85 → 264 V ac, Источник питания

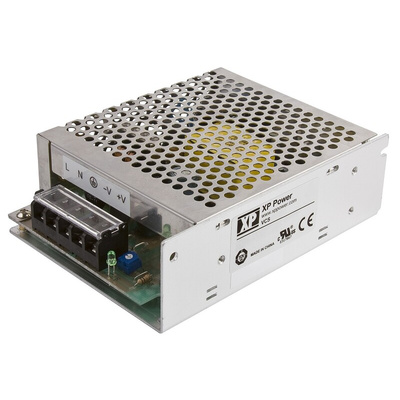

XP Power AC To DC Power Supply

The XP Power VCS series 100W rated AC to DC power supply with a single output has an output current rating of 4.17A at 24VDC. It has a universal input supply voltage rating from 85VAC to 264VAC.

Features and Benefits

Compact
Convection cooled ranging between -25°C and 70°C
Efficiency is 86.5%
No load input power is <0.5W
Operating temperature ranging between -40°C and 70°C
Rugged construction

Certifications

CSA C22.2 No.60950-1-03
EN55022 Class B conducted and radiated
EN60950-1
EN61000-3-2 Class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60% 100ms, 100% 5000ms, Perf criteria A, B, B
EN61000-4-2, level 3 Perf criteria A
EN61000-4-3, level 3 Perf criteria A EFT/burst
EN61000-4-4, level 3 Perf criteria A (note 3)
EN61000-4-5, installation Class 3, Perf criteria A
EN61000-4-6, level 3 Perf criteria A
IEC60950-1
UL60950-1

VCS Series Datasheet
