XP Power Switching Power Supply, SDS120PS24B, 24V dc, 5A, 120W, 1 Output, 120 → 370 V dc, 90 → 264 V ac, Источник питания

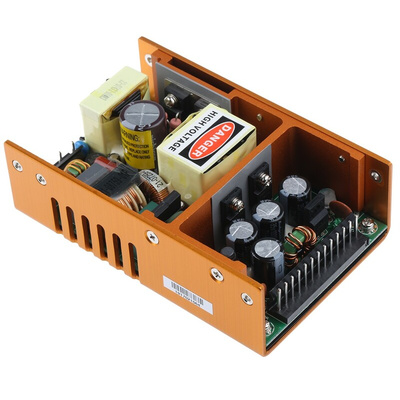

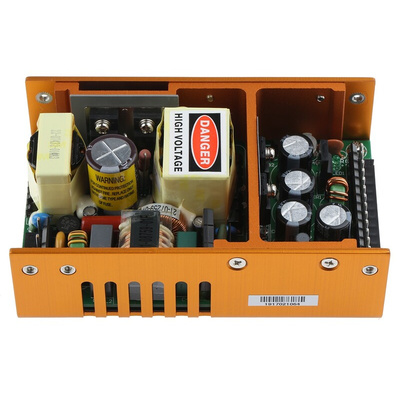

XP Power AC To DC Power Supply

The XP Power SDS series 120W single output AC to DC power supply has an output current rating of 5A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC.

Features and Benefits

Convection-cooled
High efficiency of up to 90%
Low temperature
Open frame
Open frame power supply
Operating temperature ranging between 0°C and 70°C
Packaging footprint is 5in x 3in
Single and multi-outputs
U-channel and covered versions available

Certifications

CSA60950-1 per UL
EN55022, level B conducted and radiated
EN60950-1
EN61000-3-2 Class A
EN61000-3-3
EN61000-4-11, 30% 10ms, 60% 100ms, >95% 5000ms Perf criteria A, B, B
EN61000-4-2, level 2 contact, Perf criteria A SDS150: level 3 air, Perf criteria A
EN61000-4-3, level 2, Perf criteria A
EN61000-4-4, level 2, Perf criteria A
EN61000-4-5, installation Class 3, Perf criteria A
EN61000-4-6, level 2 , Perf criteria A
EN61000-4-8, 1 A/m, Perf criteria A
UL60950-1

Datasheet
