T0052922299N, Weller Electric Soldering Iron, 24V, 90W, for use with WSR200 Safety Rest, WT1H Power Unit, WT1 Power Unit, Паяльник

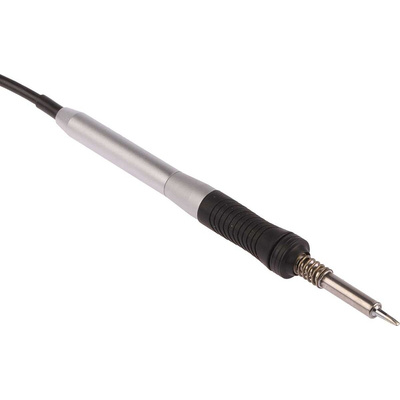

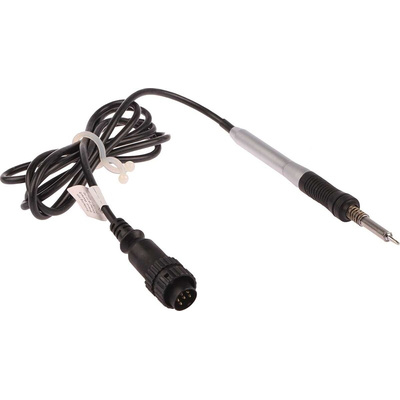

Weller WTP 90 Hybrid Soldering Iron.

From Weller this is the WTP 90 Hybrid high performance, 90 W, 24 V, soldering iron has a passive tip system which gives you quick exchange of heating elements when the iron is hot. The soldering iron uses power response heating technology including an improved soldering iron sensor position within the solder irons handle. The sensor detects when the iron is in use and automatic standby operates from the sensor. Soldering tips can easily be replaced independent of the heating element plus with all the benefits of handling small and medium soldering applications, compatibility with WT soldering stations and WR re-work stations, speedy heating of the soldering iron, the WTP 90 is a versatile and handy soldering iron

Features and Benefits.

• WTP 92 Hybrid Soldering iron.


• Power 90 W


• Voltage 24 V


• Passive tip system


• Quick exchange heating element


• Power response heating technology


• Iron heats up within 7 seconds.


• Temperature range 100°C to 450°C.


• Sensor in handle detects when in use


• Automatic Standby


• ESD Safe.


• Weight 0.07 kg.

What is Included?

• Soldering iron.


• XNT A Chisel soldering tip (1.6 mm x 0.4 mm), stock number 7527638.


• Tip changing tool, stock number 1227934.

Typical Solder Applications.

• Small and medium energy components.


• When high energy required.


• Challenging solder jobs.

Suitable Power and Re-work Stations.

• WT 1 Soldering station, 95 W, 230 V, 1 Channel, stock number 1227912.


• WT 1H Soldering station, 150 W, 230 V, 1 Channel, stock number 1227913.


• WT 2M Soldering station, 150 W, 230 V, 2 Channels, stock number 1763371.

Safety Rest:

• WSR 200 Soldering Iron safety rest, stock number 1227931.

Various Weller soldering Tips Available.

• XNT 1LX, 0.2 mm Straight chisel solder tip, stock number 8014789.


• XNT Tip, Stock number 7527710.


• XNT A, 1.6 mm Straight chisel solder tip, stock number 7527638.


• XNT 1, 0.5 mm Straight hoof solder tip, stock number 7527631.


• XNT H, 0.8 mm Straight conical solder tip, stock number 7527684.


• XNT K, 1.2 mm Straight conical solder tip, stock number 7527697.


• XNT B, 2.4 mm Straight conical solder tip, stock number 7527675.

Weller has a wide range of tips and there are 21 plus suitable XNT series tips available.
