T0053441399N, Weller WT 1013 Set Soldering Station 90W, 230V, 50°C to 450°C, Паяльная станция

Weller WT 1013 Soldering Station

Introducing the professional 1-channel Weller WT1012 soldering station. This powerful and easy to use set is ideal for any professional soldering applications and consist of:
• WT 1 Power Supply Unit
• WP 80 Soldering Iron
• WSR 201 Safety Rest

Features and Benefits:

WT1 Control Unit:
• The heating element has quick-change functionality that enables you to use the soldering iron station with a wide range of different soldering tip types.
• This soldering station is suitable for use with a wide range of WT series soldering irons, soldering tweezers and fume extraction units. This unit also has backwards compatibility with Weller WSD and WD series tools, enabling it to be used with 1000 different tool and tip combinations.
• WT1 control units can be stacked on each other (and on WT1 H and WTHA 1 soldering stations). This is a great way of saving space on your workbench. The housing cover on the unit can also be used for storage.
• An integrated sensor alerts the control unit when a soldering iron is not in use. This automatically switches the soldering station into a power saving mode.
• The WT 1 station supports tools with operating temperatures from +50 °C up to +550 °C. This gives it a great deal of flexibility.
• The soldering station has a front-mounted mains switch which is easy to access.
• This soldering iron station has a backlit LCD display. You can alter the brightness of the screen, making it perfect for all environments. The screen gives you information on all of the functions of the soldering iron or equipment being used and allows you to easily monitor the output power supplied to the soldering iron. The menu displayed on the screen has a clear and easy to follow menu making it simple to set up the soldering station to your requirements.
• Temperature accuracy to ±9 °C.
• Features OFF time, lock function and process window.
• Supplied with Type G UK plug and Type F Schuko plug.
WP 80 Soldering Iron:
• The WP 80 is an 80 W soldering iron from Weller.
• It is suited to soldering medium-sized components that have a relatively high demand for energy.
• This soldering station can be used with the full series of LT soldering tips from Weller.
• It features silver line heating technology and is fast to heat up to the required temperature.

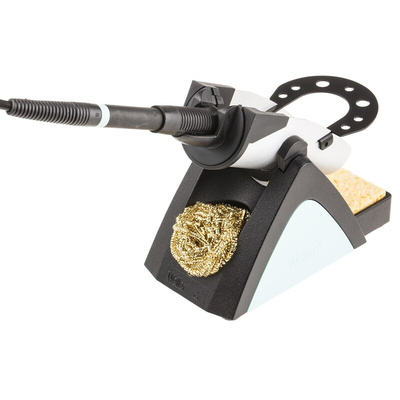

WSR 201 Safety Rest:
• The WSR 201 safety rest is supplied with brass metal wool and a sponge. Both are integrated into the stand. Depending on your application, you can choose between wet and dry cleaning for your soldering iron tip.
• This safety stand also includes a tip retainer.

Typical Applications:

Soldering irons are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering irons are often used by:
• Engineers
• Electricians
• Metalworkers
• Jewellers
• Home inventors

FAQs:

Does it display in Centigrade or Fahrenheit?
This solder station enables you to change between Centigrade (°C) and Fahrenheit (°F). It also has a temperature calibration function.
What plug does it have?
This soldering station is supplied with both UK and EURO plugs.
Do you stock replaceable soldering tips for this soldering iron?
The Weller WP 80 is compatible with the Weller LT series of soldering tips. There is a wide selection within the LT range, for example, 292-2053, or 361-0723
How fast does it heat up?
This soldering iron heats up extremely fast. It can be used immediately.
What language does interface operate in?
Within the menu navigation, you are able to make your choice of language.
