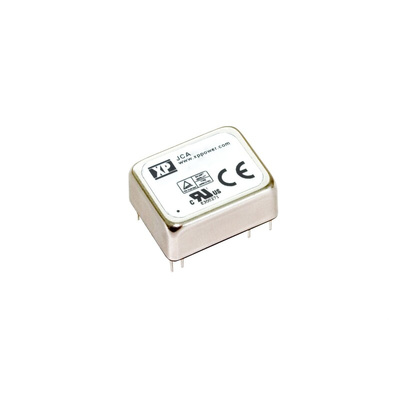

JCA0624S03, XP Power JCA DC-DC Converter, 3.3V dc/ 1.52A Output, 18 → 36 V dc Input, 6W, Through Hole, +100°C Max Temp -40°C, Преобразователь

XP Power - JCA Series of 4/6 W Isolated DC-DC Converters

The JCA series from XP Power offers a highly reliable range of single and dual output, 4 W to 6 W, isolated DC-DC converters. The series attributes 1500 VDC input to output with basic insulation, 500 VDC input to case and 500 VDC output to case. The range is available in a compact 1.0” x 0.8” metal package, has a 2:1 input range and has been fully UL and TUV approved.

4 W to 6 W, isolated DC-DC converters
Compact metal 1.0” x 0.8” package
2:1 input range
1500 VDC input to output with basic insulation
500 VDC input to case, 500 VDC output to case
Single and dual output
High efficiency up to 85%
-40 °C to +100 °C Operating temperature
UL and TUV approved
Industry standard pin out

XP Power - Isolated DC-DC Converters

Datasheet
