SRBC-CA3-YR90-MW-22A-1W&, Festo Pneumatic Sensor, IP67, Electric Operation

Festo SRBC Limit Switch Boxes

SRBC sensor boxes are used with quarter turn pneumatic actuators (such as the Festo DFPD series). They provide electrical feedback and a visual indication of the valves current position and are easily installed using mounting adapters. Installation is easy using the pre-assembled mounting adapter and the actuator cams require no specialised tooling to set.

Features & Benefits

• Mechanical and inductive versions available
• 10 Pin terminal strip for easy wiring
• Pre-assembled mounting adaptor
• Easy to read 3D valve position indicator
• Weather tight, corrosion resistant casing
• Two cable inputs for power to solenoid and sensor box
• Easy to set trip cams requiring no additional tooling
• Number of switches: 2
• IP67

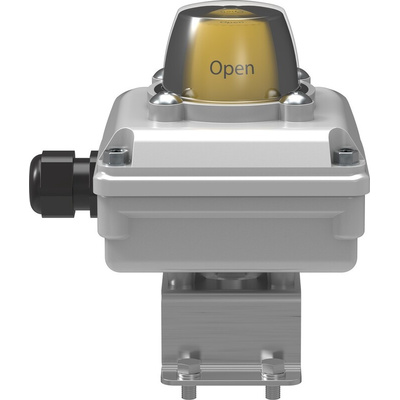

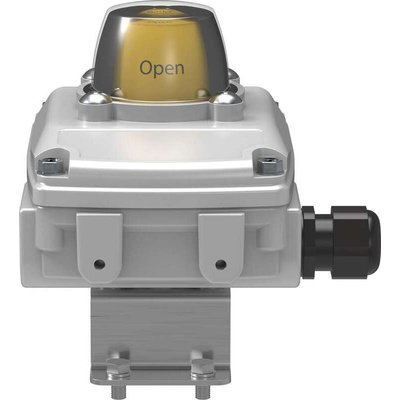

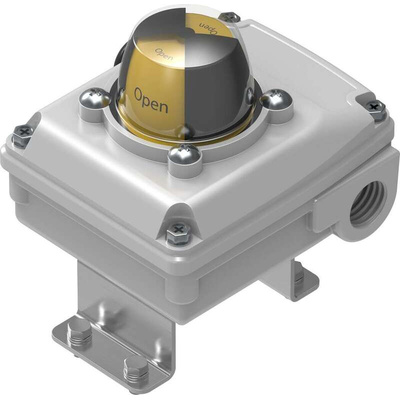

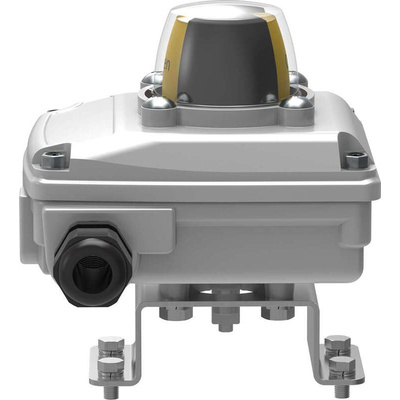

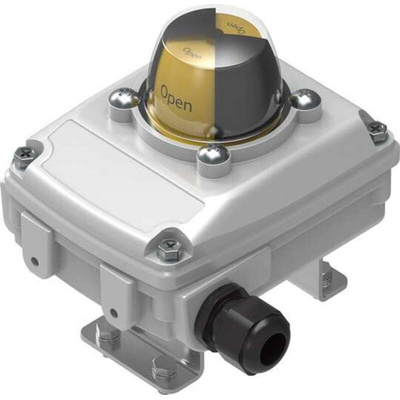

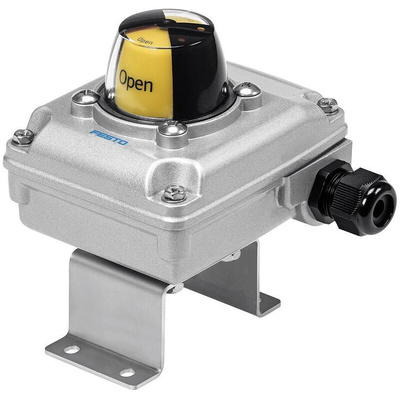

FESTO Sensor Box - SRBC-CA3-YR90-MW-22A-1W-C2P20

• Angular design
• Mechanical/electrical and for proximity sensor measuring principles
• -20 to 80 °C ambient temperature
• Toggle switch and single pole switching element function
• 3A maximum output current (AC) and 3A maximum output current (DC)
• Screwed terminal electrical connection
• On flange and with mounting bracket mounting options
• Option to assemble in any position

SRBC-CA3-YR90-MW-22A-1W& Specification Sheet

Sensor boxes SRBC
