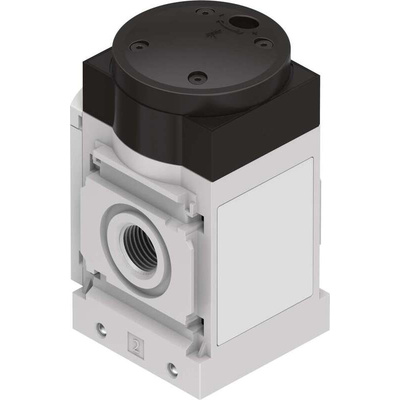

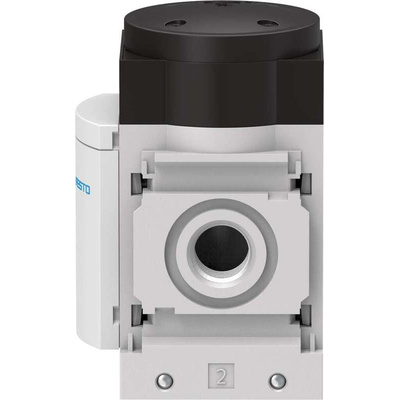

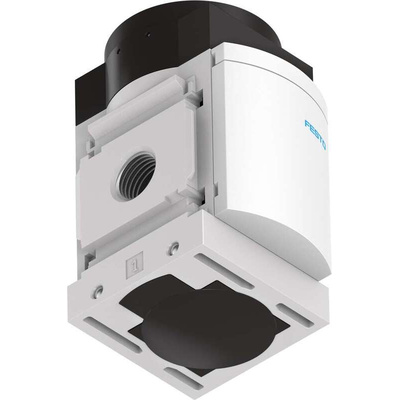

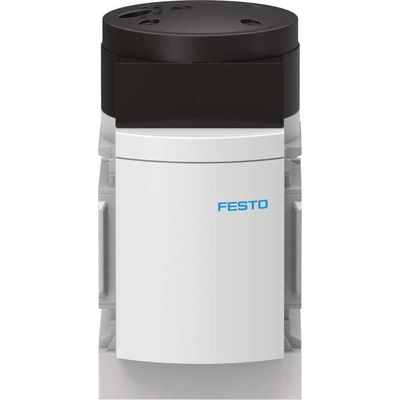

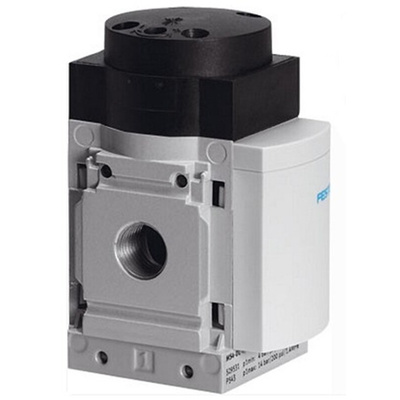

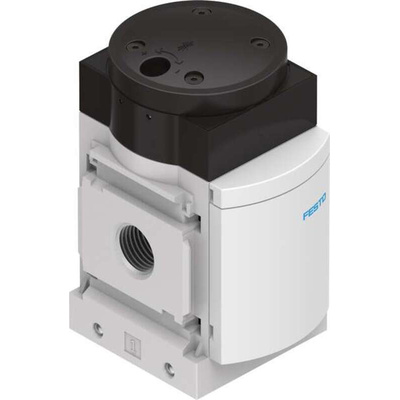

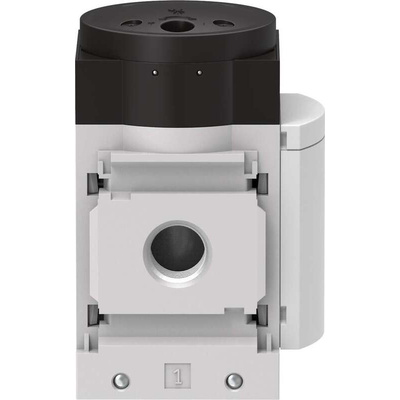

MS6-DL-1/2, Festo 2/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/2 MS6 Series, 529817, Клапан

Festo Pneumatic Solenoid Valve, 2/2 Valve Function, Left-to-Right Airflow Direction - MS6-DL-1/2

Deliver precision power to your air tools with this pneumatic solenoid valve from Festo. As a soft-start unit, it gradually builds up pressure to prevent components from moving too quickly, reducing the risk of damage. Standard G1/2 port connections make it a cinch to hook up to your existing setup. Thanks to its high flow rate of 6,450L/min, this is a suitable option for use with high-power applications. It can manage between 4 and 18 bar of pressure, so it works well with light-duty to heavy-duty equipment like cylinders or motors.

Features & Benefits

• Wide operating temperature range between -10°C and +60°C to suit harsh settings
• NBR seals block out debris for smooth operation in contaminated environments
• Aluminium die-cast housing is corrosion-resistant to prevent rust build-up from damaging your equipment
• Slim dimensions of 62 (W) x 108 (H) x 76mm (D) fit neatly in dense arrangements

Applications

• Packaging facilities
• Component manufacture
• Automated systems

How do I mount this unit?

You can mount this unit in any direction in a snap by installing it in-line or with an MS6-WP wall bracket (202-1882).

Soft Start and Quick Exhaust Valves

MS6-DL-1/2 Specification Sheet

Catalogue - The Festo Core Product Range.

Instruction Sheet - MS6 Series
