R-78E12-0.5, Recom Switching Regulator, Through Hole, 12V dc Output Voltage, 15 → 28V dc Input Voltage, 500mA Output Current,, Импульсные стабилизаторы

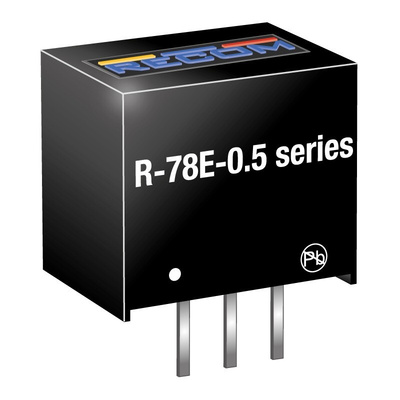

R78E Series Switching Regulator

The Recom R-78E series are highly efficient, non-isolated switching regulators. They offer a high-quality product at a low cost in production quantity. Coupled with the compact design, this module is ideal across a number of industrial applications.

With a high start-up current capability and a high efficiency of up to 95%, there is no need for heat sink and with the compact SIP3 package important space on the board is also saved.

Features and Benefits

• R-78E Series
• Low cost switching regulator
• High start-up current capabilities
• Short circuit protection
• High efficiency of up to 95%
• High efficiency, non-isolated, no need for heatsinks
• Pin compatible with 78 series regulators
• SIP3 package

Note

Power derates above 70°C

RECOM Switching Regulator, Through-Hole Mounting, DC-DC Conversion - R-78E-0.5 Series - R-78E12-0.5

Need a stable 12V DC supply for your equipment? This switching regulator from RECOM takes an input voltage anywhere between 15V and 28V DC and outputs a steady 12V DC. Line regulation of ±0.5% and load regulation of ±1% ensure a consistent supply, even if there are fluctuations in supply and demand. High efficiency of 95% reduces heat dissipation, meaning you won't need a separate heatsink. The compact SIP3 package saves space on your board.

Features & Benefits

• Operating temperature range of -40°C to +85°C makes it suitable for harsh environments
• Ripple and noise of 70 mV Pk-Pk reduce risk of damage due to overheating
• MTBF of 2,182,000h at +85°C for a long service life
• Through-hole mounting creates a strong connection with your PCB

Applications

• Military hardware
• Steel mills
• Lifts

What's load regulation?

Load regulation is the measure of a power supply's ability to output a constant voltage when the output current fluctuates. The smaller the percentage, the more stable the supply.

What's line regulation?

Line regulation is similar to load regulation in that it's a measure of a power supply's ability to maintain a constant voltage despite fluctuations in current. Load regulation refers to the output, whereas line regulation refers to the input.
