PUN-10X1,5-BL, Festo Compressed Air Pipe Blue Polyurethane 10mm x 50m PUN Series, 159668, Шланг

Festo PUN Series Polyurethane Tubing

FESTO PUN series is a highly flexible plastic tubing for use with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane which gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate.

Features and Benefits

Highly flexible plastic tube
Compatible with a wide variety of fittings
Compressed air in accordance with ISO 8573¬1:2010
Operating pressure: -0.95 to +10 bar
Free of copper and PTFE
Conforms to RoHS

What is an air hose?

An air hose is a tube which transports pressurised air to pneumatic actuators, valves, tools and other devices. A robust and reliable air hose is absolutely essential to maintaining a consistent airflow. A wide range of materials can be used to create the tubing such as polyurethane, rubber, PVC and nylon. Selecting the correct material to suit the application and environment is important to ensure a long service life.

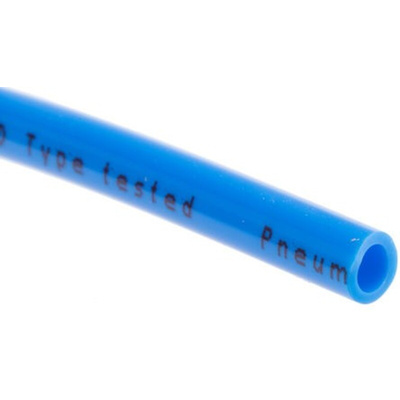

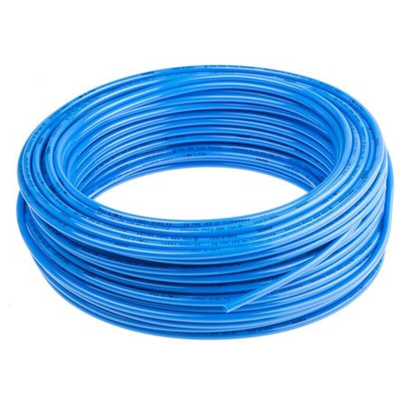

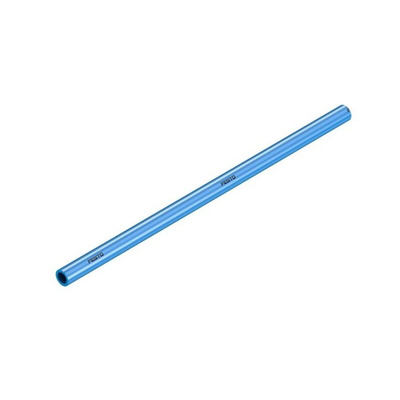

Festo Blue Polyurethane Air Hose, 50m Length, 10mm OD - PUN-10X1,5-BL

For easy transmission of compressed air in your pneumatic system, choose this robust hose from Festo. As it's made of polyurethane (PU) material, it's a durable and long-lasting choice that resists deformation. It's also flexible, with a minimum bending radius of 28mm so you can install it around corners without the risk of damage. The air hose comes as a single length of 50 metres and is easy to cut to size, making it suitable for multiple projects, both big and small.

• Wide operating temperature range of -35°C to +60°C for use in demanding industrial environments
• Light weight of 0.05kg/m for easy handling and minimal strain on your setup
• Blue colour for immediate identification as a pneumatic component
• Maximum operating pressure of 10 bar for heavy-duty applications

Applications

• Medical and dental equipment
• Industrial machinery
• Water-cooling systems

How do I install this hose?

This hose is easy to install and doesn't need any tools. Simply push it into the adapter you want to use it with and you're ready to go. Just make sure you turn off the air supply first to prevent accidents.

Datasheet

PUN-10X1,5-BL Specification Sheet

1228446_Brochure_en

1228446_Catalogue_en
