PUN-12X2-BL, Festo Compressed Air Pipe Blue Polyurethane 12mm x 50m PUN Series, 159670, Шланг

Festo PUN Series Polyurethane Tubing

FESTO PUN series is a highly flexible plastic tubing for use with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane which gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate.

Features and Benefits

Highly flexible plastic tube
Compatible with a wide variety of fittings
Compressed air in accordance with ISO 8573¬1:2010
Operating pressure: -0.95 to +10 bar
Free of copper and PTFE
Conforms to RoHS

What is an air hose?

An air hose is a tube which transports pressurised air to pneumatic actuators, valves, tools and other devices. A robust and reliable air hose is absolutely essential to maintaining a consistent airflow. A wide range of materials can be used to create the tubing such as polyurethane, rubber, PVC and nylon. Selecting the correct material to suit the application and environment is important to ensure a long service life.

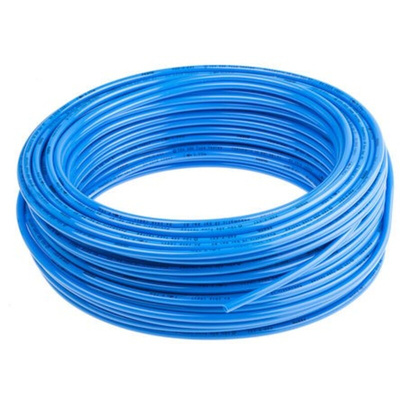

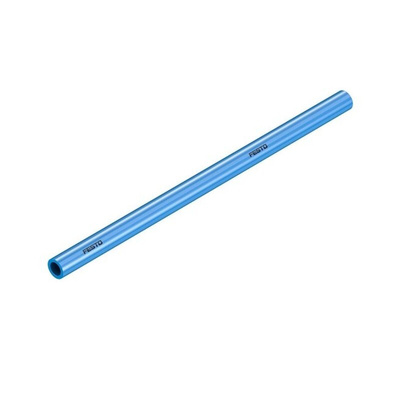

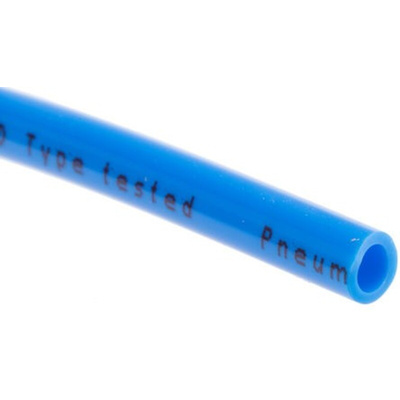

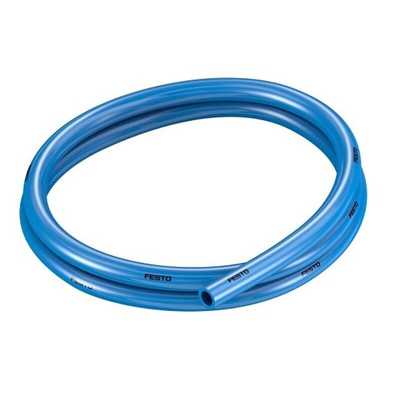

Festo Blue Polyurethane Air Hose, 50m Length, 12mm OD - PUN-12X2-BL

Transport air to valves, cylinders and other pneumatic devices with this durable hose from Festo. A high-pressure threshold means it can transmit up to 10 bar of compressed air, so it's ideal for heavy-duty applications. Its robust polyurethane body is resistant to impact and abrasion and can withstand harsh environments. With a minimum bending radius of 33mm, this hose is flexible and can be installed around corners if needed. Pneumatic tubing of this type is commonly used in air-powered industrial equipment such as bottle-rejection pushers.

• Length of 50m can be used whole for long runs or cut to the size needed for smaller jobs
• Free of copper and PTFE (polytetrafluoroethylene) to reduce the risk of toxic particle or gas emissions during use
• Light weight of 0.08kg/m for easy handling and minimal system strain
• Suitable for use with push-in fittings for simple and tool-free installation

Applications

• Aerosol manufacturing industries
• Mechanical workshops
• Water treatment plants

Does hose length affect the output pressure?

Yes, it does. The supply pressure decreases the longer the hose you use.

Datasheet

PUN-12X2-BL Specification Sheet
