PUN-8X1,25-BL, Festo Compressed Air Pipe Blue Polyurethane 8mm x 50m PUN Series, 159666, Шланг

Festo PUN Series Polyurethane Tubing

FESTO PUN series is a highly flexible plastic tubing for use with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane which gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate.

Features and Benefits

Highly flexible plastic tube
Compatible with a wide variety of fittings
Compressed air in accordance with ISO 8573¬1:2010
Operating pressure: -0.95 to +10 bar
Free of copper and PTFE
Conforms to RoHS

What is an air hose?

An air hose is a tube which transports pressurised air to pneumatic actuators, valves, tools and other devices. A robust and reliable air hose is absolutely essential to maintaining a consistent airflow. A wide range of materials can be used to create the tubing such as polyurethane, rubber, PVC and nylon. Selecting the correct material to suit the application and environment is important to ensure a long service life.

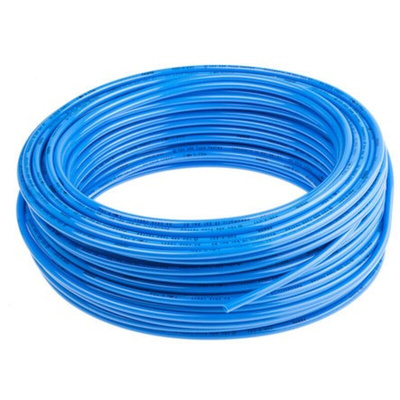

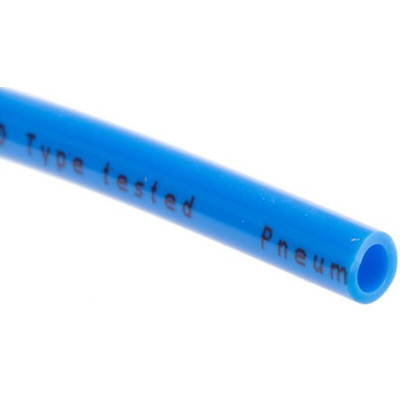

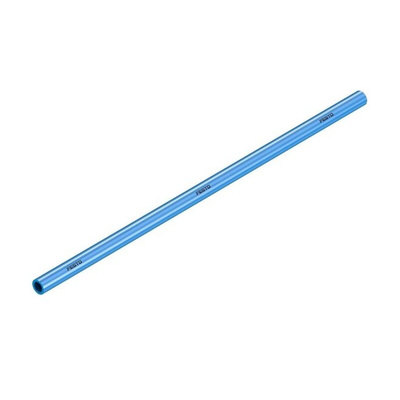

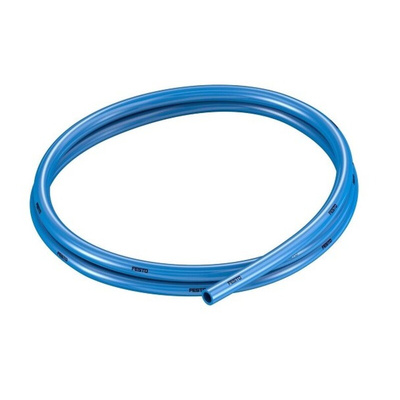

Festo Blue Polyurethane Air Hose, 50m Length, 8mm OD - PUN-8X1,25-BL

Looking for a secure way to transmit compressed air in your pneumatic system? Turn to this air hose from Festo. With an inside diameter of 5.7mm and outside diameter of 8mm, it's designed to fit easily onto larger pipes and connectors. The flexible polyurethane material is tear-resistant to allow you to use it in energy chains and pneumatic equipment with high cycle rates. A minimum bending radius of 24mm means you can install the hose around sharp corners without damaging its internal tubing or reducing its performance.

• Maximum operating pressure of 10 bar for use in high-pressure applications
• Broad operating temperature range between -35°C and +60°C to withstand harsh environments
• Light weight of 0.0302kg/m for minimal strain on equipment
• Shore hardness of D52+/-3 for reliable durability
• 50m length offers ample stock for multiple cut-and-fix applications

Applications

• Automotive industry
• Aviation industry
• Hydraulic equipment
• Marine industry

What type of pneumatic fittings can I attach to this air hose?

This hose is compatible with 6mm ID (inside diameter) barbed connectors with or without a nut, as well as 8mm OD (outside diameter) push-in connectors, making it a versatile choice.

Datasheet

PUN-8X1,25-BL Specification Sheet
