PUN-H-12X2-BL, Festo Compressed Air Pipe Blue Polyurethane 12mm x 50m PUN-H Series, 197387, Шланг

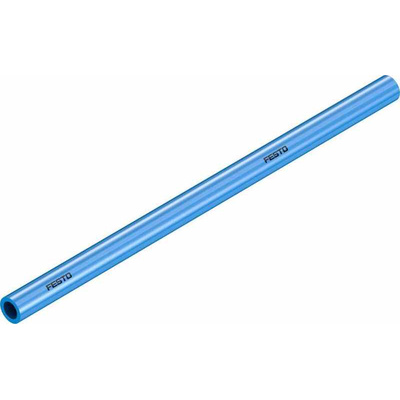

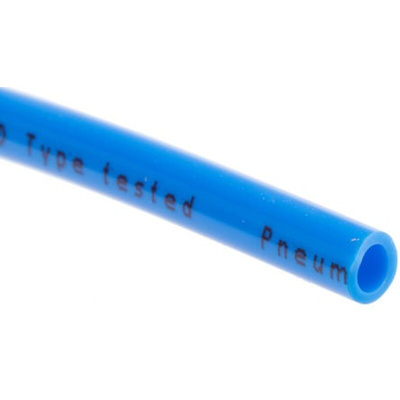

Festo PUN Series Polyurethane Tubing

FESTO PUN series is a highly flexible plastic tubing for use with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane which gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate.

Features and Benefits

Highly flexible plastic tube
Compatible with a wide variety of fittings
Compressed air in accordance with ISO 8573¬1:2010
Operating pressure: -0.95 to +10 bar
Free of copper and PTFE
Conforms to RoHS

What is an air hose?

An air hose is a tube which transports pressurised air to pneumatic actuators, valves, tools and other devices. A robust and reliable air hose is absolutely essential to maintaining a consistent airflow. A wide range of materials can be used to create the tubing such as polyurethane, rubber, PVC and nylon. Selecting the correct material to suit the application and environment is important to ensure a long service life.

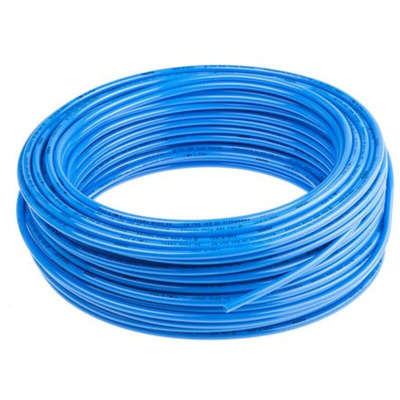

Festo Blue Polyurethane Air Hose, 50m Length, 10 Bar Maximum Operating Pressure - PUN-H-12X2-BL

This air hose from Festo effectively transfers pressurised gases or fluids from one point in a pneumatic system to another. It's made of polyurethane, which is highly flexible so the hose won't tear, stretch or break when bent or manipulated. Thanks to its durability, it's suitable for use with energy chains and pneumatic operations with a high cycle rate. This hose has a wide operating temperature range from -35°C to +60°C, so you can use it in harsh indoor and outdoor conditions.

• High hydrolysis resistance for use in damp and humid environments
• Wide operating pressure range from 0.95 to 10 bar for versatile use
• Push-in connection means it's quick and easy to install
• Blue colour makes it easy to identify when used with multiple tubes

Applications

• Construction industry
• Marine applications
• Food and beverage industry
• Sandblasting equipment

How do I choose the right air hose for my application?

Your choice of air hose should match the demands of your application. Look at the operating pressure requirements and make sure your chosen pneumatic tubing can handle it. You also need to consider the inside and outside diameters of the hose to make sure it's compatible with your connections.

Datasheet

PUN-H-12X2-BL Specification Sheet
