PUN-H-8X1,25-BL, Festo Compressed Air Pipe Blue Polyurethane 8mm x 50m PUN-H Series, 197385, Шланг

Festo PUN Series Polyurethane Tubing

FESTO PUN series is a highly flexible plastic tubing for use with compressed air, water and vacuum operating mediums. This air hose is manufactured from polyurethane which gives it flexibility suitable for use with energy chains and pneumatic applications with a high cycle rate.

Features and Benefits

Highly flexible plastic tube
Compatible with a wide variety of fittings
Compressed air in accordance with ISO 8573¬1:2010
Operating pressure: -0.95 to +10 bar
Free of copper and PTFE
Conforms to RoHS

What is an air hose?

An air hose is a tube which transports pressurised air to pneumatic actuators, valves, tools and other devices. A robust and reliable air hose is absolutely essential to maintaining a consistent airflow. A wide range of materials can be used to create the tubing such as polyurethane, rubber, PVC and nylon. Selecting the correct material to suit the application and environment is important to ensure a long service life.

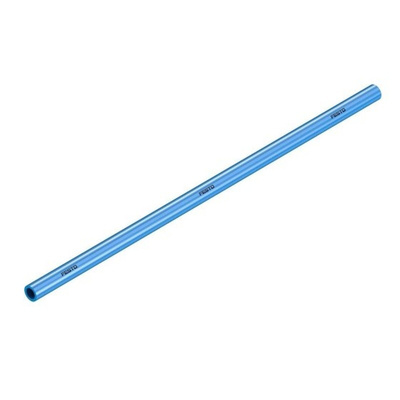

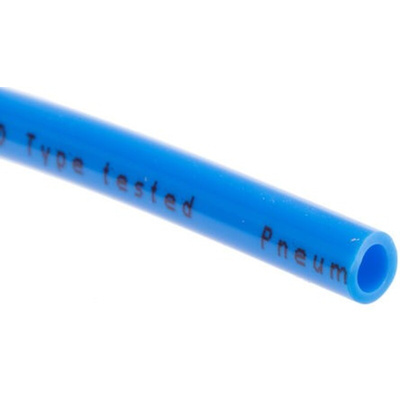

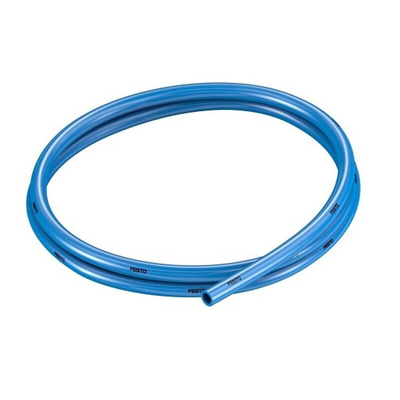

Festo BluePolyurethane Air Hose, 50m Length, 8mm OD - PUN-H-8X1,25-BL

Use this versatile air hose from Festo to carry compressed air and water in your pneumatic equipment. The plastic tubing resists hydrolysis, so it won't degrade when used with water or steam. This makes it ideal for use in hygienic applications like food handling processes and clean rooms. For versatility, you can use the pipe with 8mm outside diameter (OD) push-in connectors and 6mm inside diameter (ID) barbed connectors with nuts. This durable air hose can withstand up to 10 bar pressure in powerful energy chains and pneumatic systems with a high cycle rate.

• Made from chemical-resistant polyurethane to withstand demanding operations
• Length of 50m provides ample stock for multiple jobs
• Dimensions of 5.7mm ID and 8mm OD to fit standard ports
• Wide operating temperature range between -35°C and +60°C for safe use in challenging settings

Applications

• Oil and gas industries
• Food and beverage production
• Medical technology

How flexible is this air hose?

This hose has a 21mm minimum bending radius, which is the smallest measurement at which you can bend it without risking damage. You'll find it useful for complex setups where you need to work around corners.

Datasheet

PUN-H-8X1,25-BL Specification Sheet
