862-504, Wago 862 Series Terminal Strip, 4-Way, 32A, 20 → 12 AWG, Wire, Push-In Cage Clamp Termination

Wago Panel Mount Barrier Terminal Block

The Wago 862 series terminal strip is chassis mounted with plain marking and side entry wiring. The terminal strip can be mounted via a M3 screw and nut or a self-tapping screw from the top.

The terminal strip can accommodate solid (0.5-4 mm) and stranded cables (0.5-4 mm).

Features and Benefits

Push in Cage Clamp® connections
Panel mounted

Configuration:
RS 1228746 - 4 Conductor Panel Mount Terminal Strip, 2 Pole (plain, without ground contact)
RS 1228743 - 4 Conductor Panel Mount Terminal Strip, 3 Pole (plain, without ground contact)
RS 1228744 - 4 Conductor Panel Mount Terminal Strip, 4 Pole (plain, without ground contact)
RS 1228745 - 4 Conductor Panel Mount Terminal Strip, 5 Pole (plain, without ground contact)

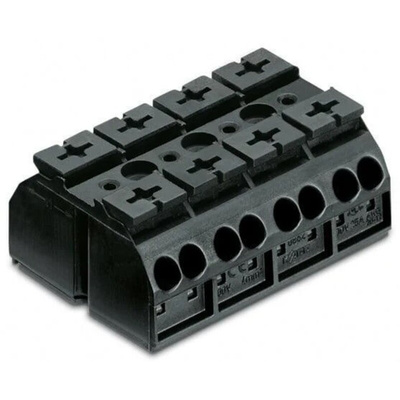

Wago Terminal Strip, Chassis Mount, 500V Voltage Rating - 862 Series - 862-504

Take the hassle out of wiring your automated devices with this Wago terminal strip. Its push-in terminals clamp leads down quickly, linking components securely to help you build your systems in no time. As the block handles current up to 32A, it drives heavy power demands without a hitch for efficient distribution. Fitting the strip is a doddle as it screws directly to a machine chassis. By taking wires sized between 0.5 and 4mm², it provides flexible connectivity.

Features & Benefits

• Four-way design, providing a handy connection point for multiple circuits
• Durable PA66 housing to resist impacts

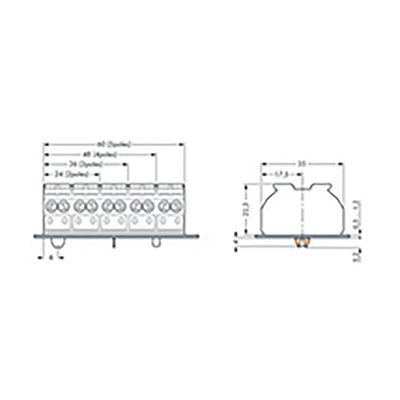

• Narrow measurements of 48 (W) x 22.3 (H) x 35mm (D) for neat mounting on busy surfaces
• Halogen-free body, cutting the risk of toxic substances forming when heated

Applications

• Manufacturing industry
• Power plants
• Industrial robotics
• Trade show stands

What special tools do I need to open this strip's terminals?

None – the ports work with a simple push button actuator, opening with a finger or screwdriver to cut back on wiring hassle.

How can I test this block's connections?

Its terminals come with test ports, allowing you to connect test equipment for speedy inspection.
