862-505, Wago 862 Series Terminal Strip, 5-Way, 32A, 20 → 12 AWG, Wire, Push-In Cage Clamp Termination

Wago Panel Mount Barrier Terminal Block

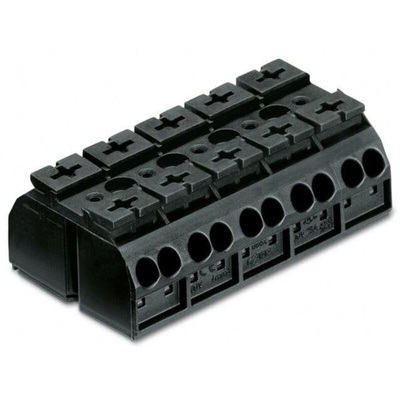

The Wago 862 series terminal strip is chassis mounted with plain marking and side entry wiring. The terminal strip can be mounted via a M3 screw and nut or a self-tapping screw from the top.

The terminal strip can accommodate solid (0.5-4 mm) and stranded cables (0.5-4 mm).

Features and Benefits

Push in Cage Clamp® connections
Panel mounted

Configuration:
RS 1228746 - 4 Conductor Panel Mount Terminal Strip, 2 Pole (plain, without ground contact)
RS 1228743 - 4 Conductor Panel Mount Terminal Strip, 3 Pole (plain, without ground contact)
RS 1228744 - 4 Conductor Panel Mount Terminal Strip, 4 Pole (plain, without ground contact)
RS 1228745 - 4 Conductor Panel Mount Terminal Strip, 5 Pole (plain, without ground contact)

Wago Terminal Strip, Chassis Mount, Push Button Actuators - 862 Series - 862-505

Speedily slot wiring into your power distribution network with this terminal strip from Wago. By clamping cables in its push-in terminals, it closes circuits quickly to glide through system assembly. Thanks to the block's push button actuators, its ports open with no need for special tools, so making connections is hassle-free. Support for up to five conductors means it's a handy linking point for many devices. The strip's built-in test plug ports provide direct wiring access to connect test equipment, saving time and trouble.

Features & Benefits

• Handles current up to 32A to push through challenging power routing processes

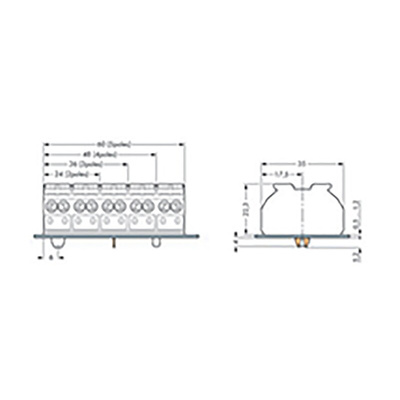

• Measures just 60 (W) x 22.3 (H) x 35mm (D), sliding into hard-working systems
• Impact-resistant PA housing, protecting sensitive elements against knocks
• Supplied in packs of ten for spares or repairs

Applications

• Food production
• Lighting systems
• Automotive industry
• Domestic wiring

Can I use this unit in public spaces?

Yes, this connector's halogen-free body stops toxic fumes from forming in fires, so it's safe for use in public areas.

How do I fit this strip into my setup?

For flexible installation, this block mounts to a machine's chassis, fitting right where you need it to.
