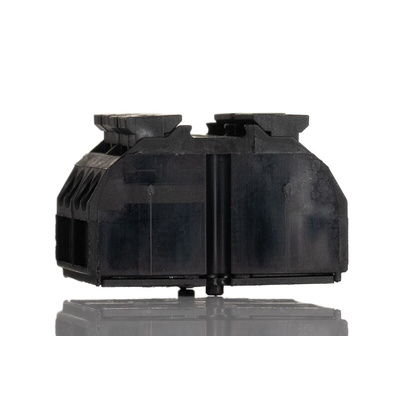

862-552, Wago 862 Series Terminal Strip, 2-Way, 32A, 20 → 12 AWG, Wire, Push-In Cage Clamp Termination

Wago Terminal Strip, 8 Connection Points, 500V Voltage Rating - 862 Series - 862-552

Keen to expand the connectivity of your machinery? Loop this Wago terminal strip into your system. It has eight connection points, making it a handy unit for managing multiple circuits at once. Thanks to its push-in terminals, the unit clamps your conductors firmly in place without the need for special tools. You can install the component in no time as it screws directly to an appliance's chassis. Side wire entry makes it a cinch to connect circuits in low-profile spaces.

Features & Benefits

• Current rating of 32A to handle heavy-duty electrical loads
• Highly conductive copper contacts for reliable electrical connections
• Works with conductor sizes between 0.5 and 4mm² to provide versatile connectivity
• Insulating PA casing for safe handling
• Halogen-free construction means it doesn't emit toxic fumes in the event of a fire

Applications

• Manufacturing industry
• Workshops
• Electrical engineering

How do I release my conductors from this product?

This terminal strip comes with a push button actuator that releases its conductors, making it easy to remove them in a flash.

Datasheet
